AIC-10 | 10" In-line post cartridge, Coconut Shell Granular Activated Carbon Filter, GAC Filtration with Female 1/4"-18 thread, Customized Medias, NSF

Item No：AIC-10

SHARE：

  1. 10" in-line post cartridge
  2. 100% coconut shell granular activated Carbon carbon(PP, CTO, UF are available)
  3. Inlet/outlet size：1/4"-18
  4. Suitable for use with various water filter, RO system, icemaker
  5. Remove chlorine and increase water quality & taste usage
  6. Capacity：1,500 gallon
  7. Strict cycle test：30-100 PSI
Color
White
Dim.
L:10"xOD:2"
Quantity
Min. order>pcs
Request
Feature
  1. Using coconut granular activated carbon, effectively remove chlorine, chloroform, volatile organic compounds, harmful chemicals, pesticides, eliminate peculiar smell, bad smell, and make the water taste well.
  2. Female 1/4"-18 thread are manufactured and inspected in accordance with international standard regulations, and have a special design of internal teeth retaining wall to avoid the risk of damage caused by over tightening by the installer.
  3. Using 100% granular activated carbon, 20*50mesh and Iodine content above 1000g/ml that is best purified function.
  4. Automated production item, reducing manual operations, stable quality, and rapid manufacturing, making it more competitive.
  5. The cartridge has passed 100,000 times strict cycle testing under 150PSI water pressure and 300 PSI burst test to make sure it’s durable.(conform to NSF test criteria)
  6. 100% pure raw materials for housing
  7. Before shipment all pass 100% leaking test
  8. Made in Taiwan

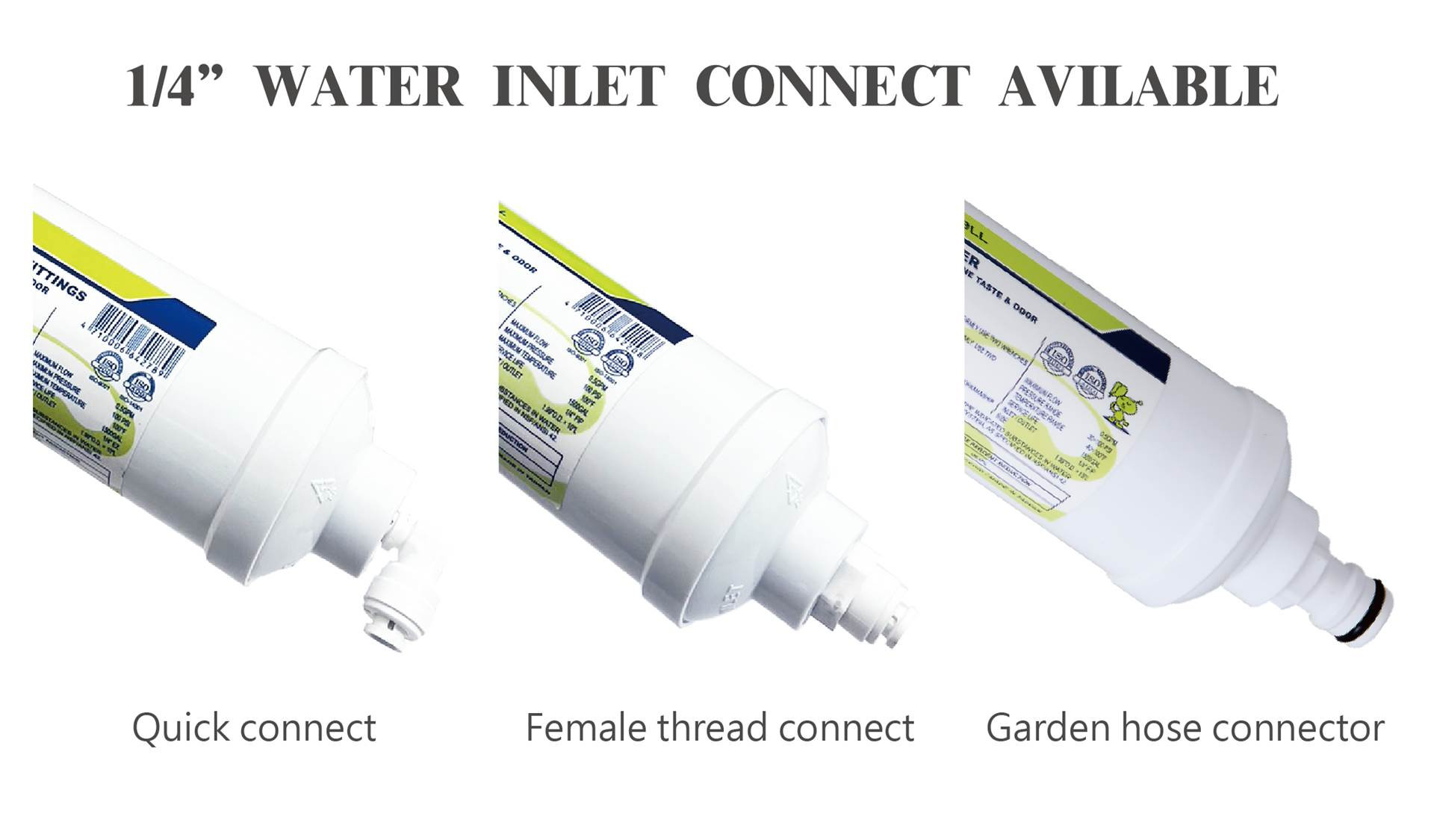

FILTER TWO KINDS OF 1/4 WATER INLET CONNECT AVAILABLE

FILTER SPECIAL DESIGN FOR SQUARE STAINLESS STEEL304 KNIFE HOLDER

FILTER CARBON BLOCK INNER FILTER

FILTER FEMALE 1/4-18NPT& SPECIAL DESIGN OF INTERNAL TEETH RETAINING WALL

FILTER 100% PURE RAW MATERIAL INJECTION NSF CERTIFIED POLYPROPYLENE(PP) MATERIAL



FILTER MATERIAL OF WATER CONTACT PART

FILTER USING 100% NATURAL COCONUT GRANUL ACTIVATED CARBON

FILTER BEFORE SHIPMENT ALL PASS 100% LEAKING TEST

Specification
MODEL No. O.D. LENGTH FITTING SIZE MEDIA CAPACITY
(GALLON)		 FLOW RATE(GPM) Q'TY/
CARTON		 WEIGHT
(KGS)		 CU'FT
AIC-10NSF 2" 10" 1/4"FNPT Granular activated carbon  1,500 0.5 50 13 1.46
AIP-10 2" 10" 1/4"FNPT PP Sediment 1,500 0.5 50 10 1.46
AIT-10 2" 10" 1/4"FNPT Carbon block  1,500 0.5 50 13 1.46
AIC-10EZ-NSF 2" 10" 1/4"EZ Granular activated carbon  1,500 0.5 50 13 1.46
AIP-10EZ 2" 10" 1/4"EZ PP Sediment 1,500 0.5 50 10 1.46
AIT-10EZ 2" 10" 1/4"EZ Carbon block 1,500 0.5 50 13 1.46
AIC-10+C-1414U 2" 10" 1/4"FNPT+quick connector Granular activated carbon  1,500 0.5 50 15 2
AIU-10 2" 10" 1/4"FNPT Ultra filtration 1,500 20ml/分 50 13 1.46
AIU-10EZ 2" 10" 1/4"EZ Ultra filtration 1,500 20ml/分 50 13 1.46

1. Filter Media are available.

2. AIU-10 ultra filtration specification：Pore size：0.02 - 0.1 μm

3. Customized media as below:

Certificates











Technic support and Download
PRODUCT LEAFLET-AIC-10 IN-LINE
PRODUCT LEAFLET-AIC-10UF
