HE0514WW-C | OEM/ODM 5 Inch Standard Polypropylene Clear White Water Filter Cartridge Housing w/ Flat Cap, 1/4" Female thread, Made In Taiwan

Item No:HE0514WW-C

SHARE:

  1. 5" Polypropylene housing, 1/4" white cap
  2. Double O-ring Design
  3. Material: Polypropylene
Color
Dim.
Quantity
Min. order>pcs
Request
Feature

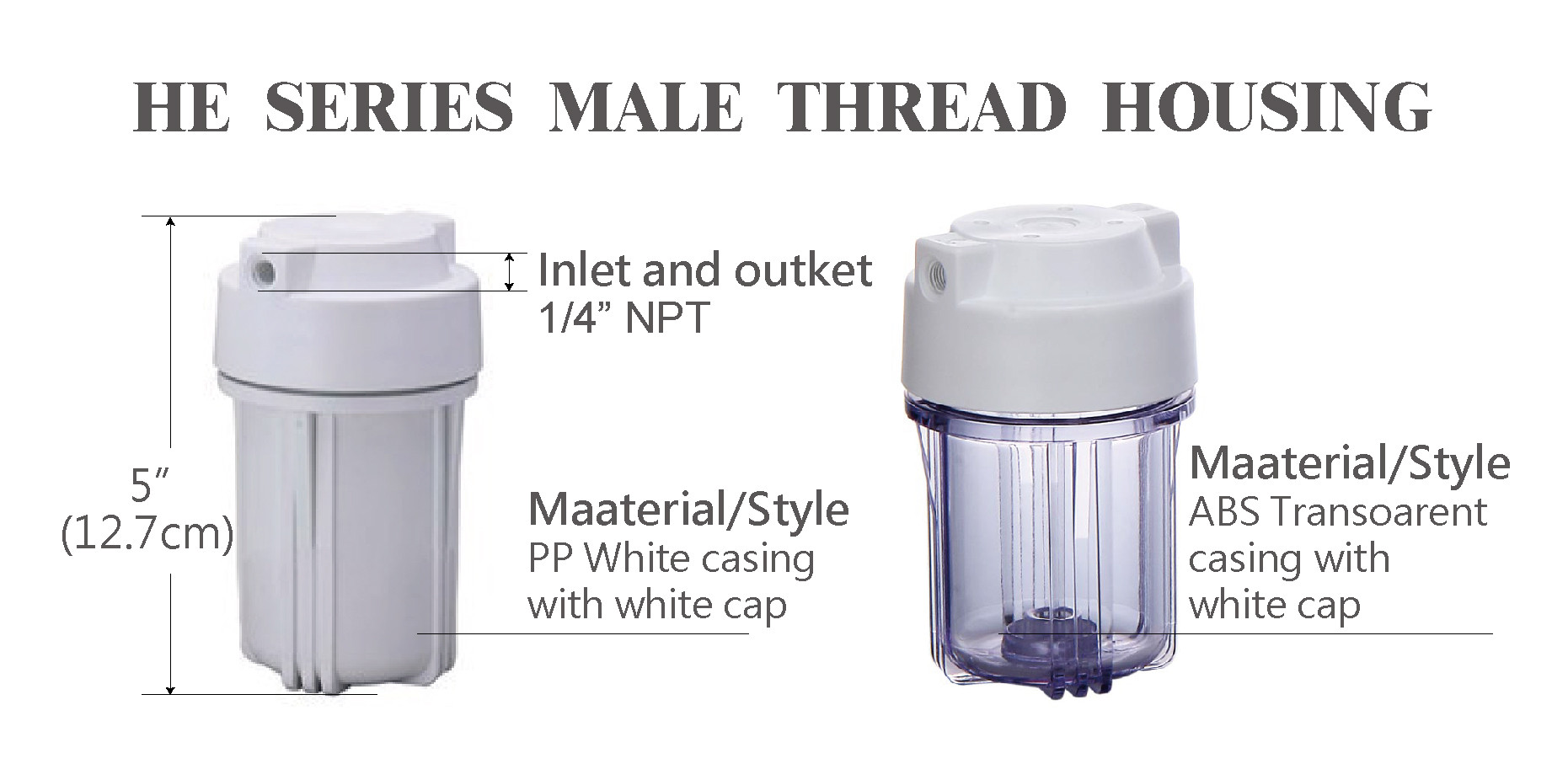

  1. 1/4" Female thread is comform to the international standard 1/4"-18 NPT measurement
  2. 100% pure raw material injection
  3. PP white housing have been done 100,000 times strict cycle test under 150PSI high water pressure. (conform to NSF test criteria)
  4. Made in Taiwan
Specification

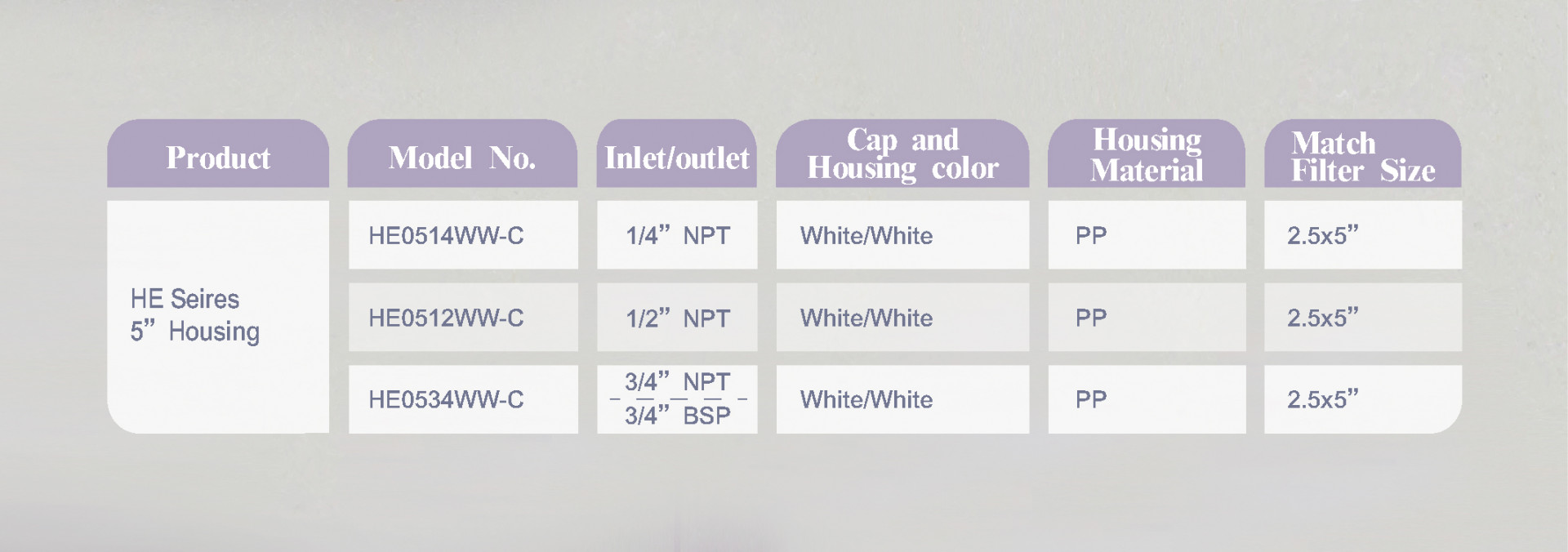

Model No. Specification Q'TY/CTN Weight (Kgs) Cu'ft

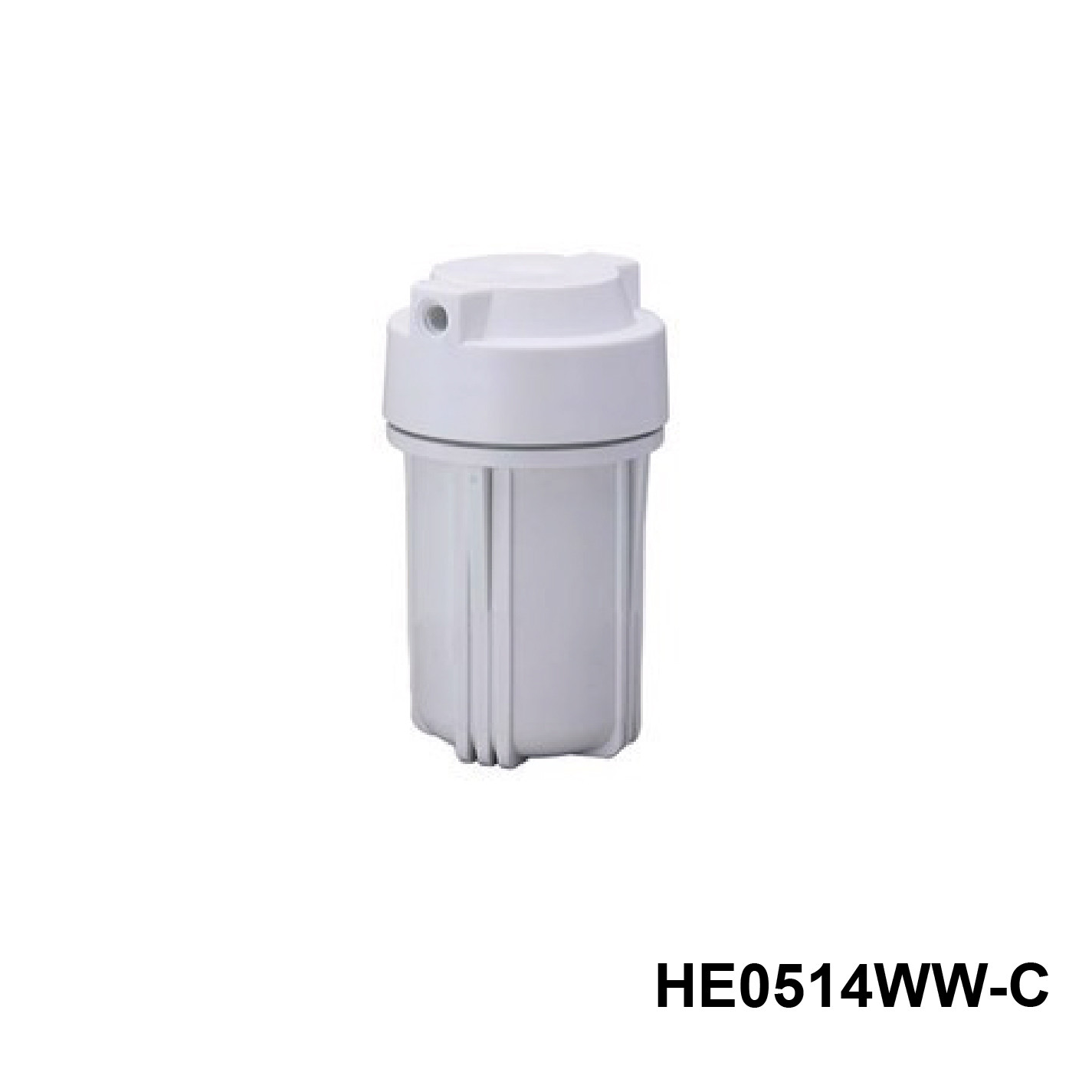

HE0514WW-C
5" PP WHITE HOUSING, 1/4" WHITE FLAT CAP 24
13.5
2.23

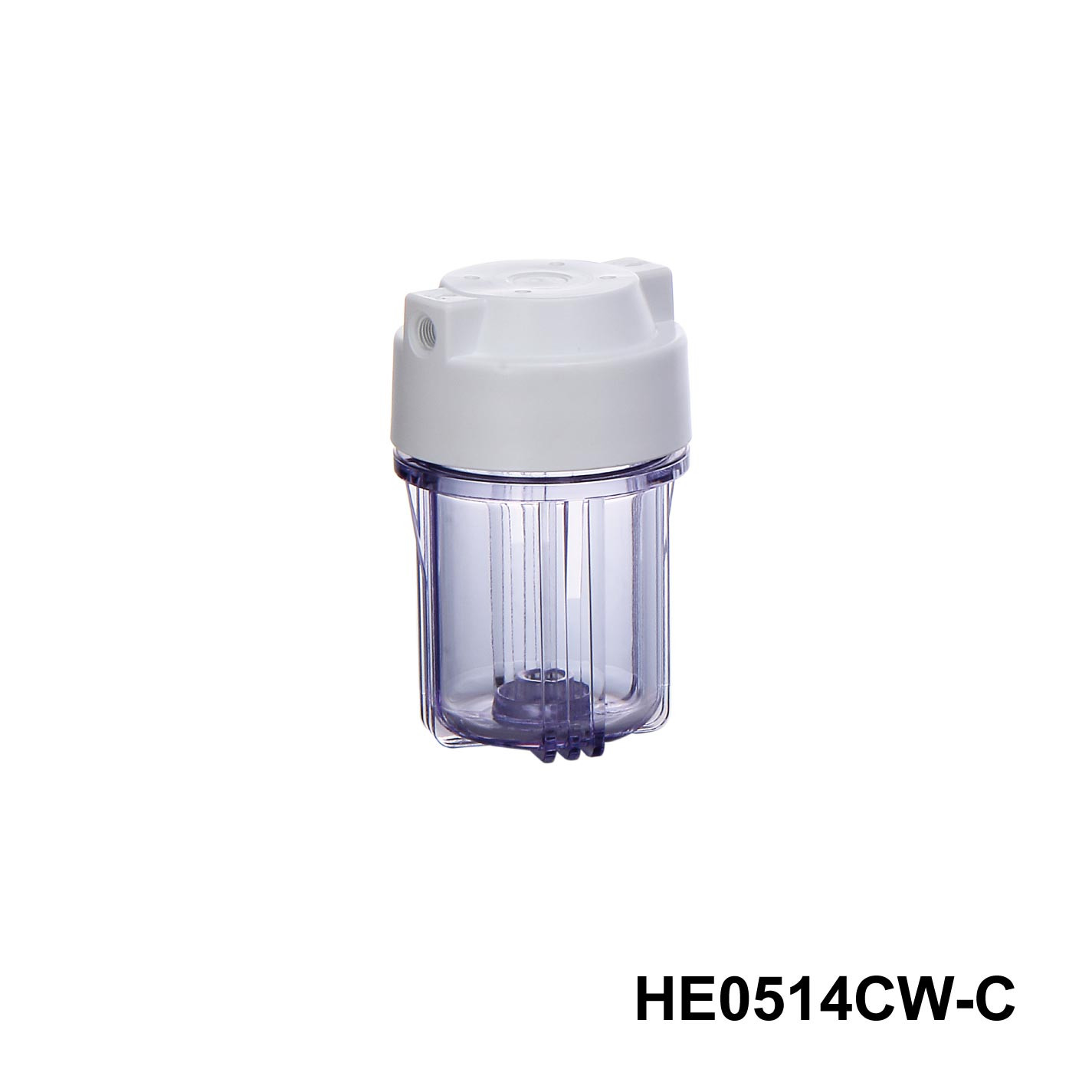

HE0514CW-C 5" AS CLEAR HOUSNG, 1/4" WHITE FLAT CAP 24 16 2.6
HE0512WW-UNR 5" PP WHITE HOUSING, 1/2" WHITE RIB ROUND CAP, WITH PRESURE RELEASE DEVICE 12 11 2

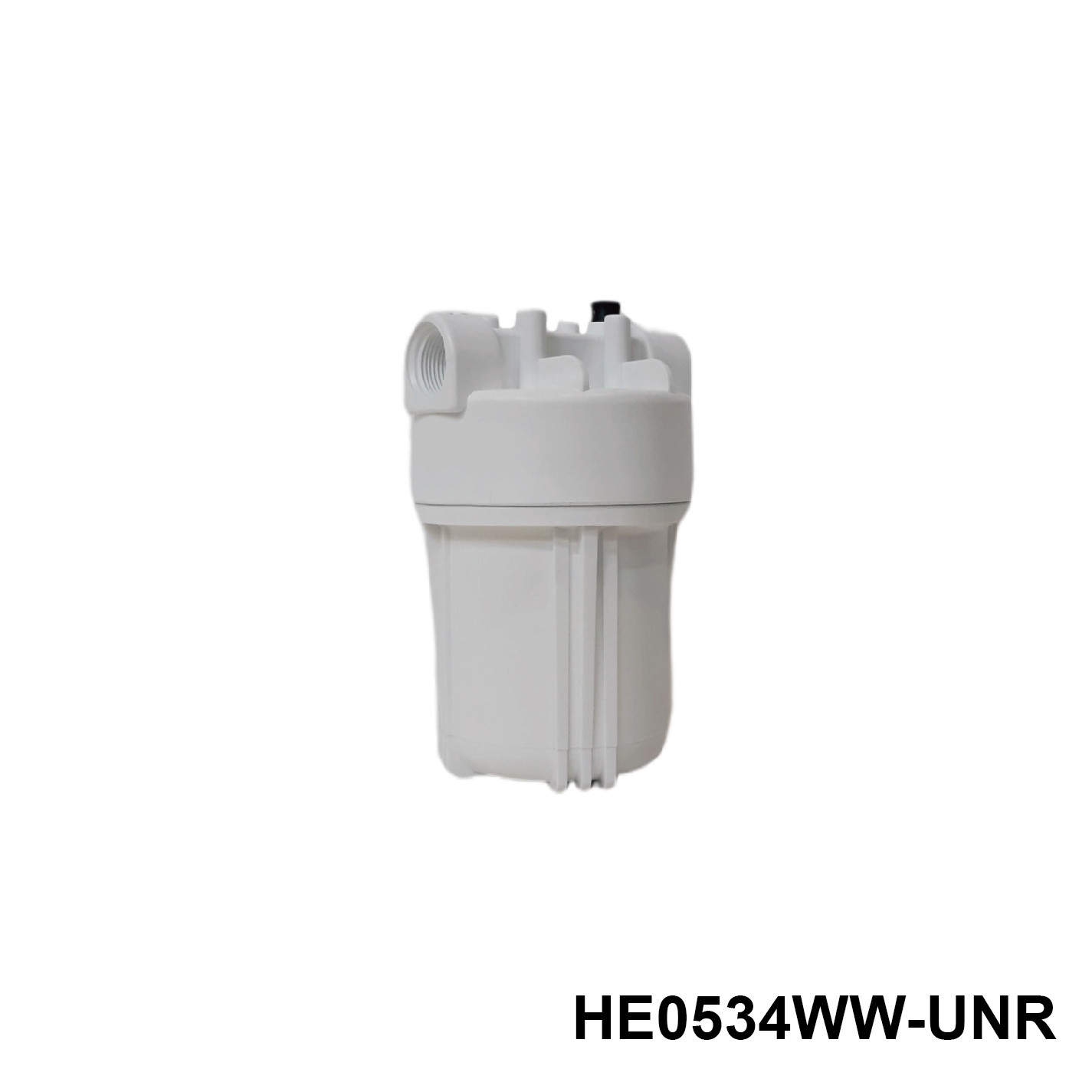

HE0534WW-UNR 5" PP WHITE HOUSING, 3/4" WHITE RIB ROUND CAP, WITH PRESURE RELEASE DEVICE 12 11 2

Material : P.P. = Polypropylene(White housing)
                A.S. = Acrylonitrile styrene(Clear housing)

Certificates
Technic support and Download
Standard
HE0514WW-C | OEM/ODM 5 Inch Standard Polypropylene Clear White Water Filter Cartridge Housing w/ Flat Cap, 1/4" Female thread, Made In Taiwan
Item No:HE0514WW-C
Type Number Detail
Upload files
Upload files(jpg/excel/pdf,Limit 10 MB)
Upload a file here
Customized
HE0514WW-C | OEM/ODM 5 Inch Standard Polypropylene Clear White Water Filter Cartridge Housing w/ Flat Cap, 1/4" Female thread, Made In Taiwan
Item No:HE0514WW-C
Customized
Changeable Parts
