RO Membrane Housing

Item No:HM-256

SHARE:

  1. Double o-ring
  2. 1/8"NPT & 1/4"NPT & 1/4"E-Z  connect cap available
  3. Material: Polypropylene
  4. Weight:270g
Color
Dim.
Quantity
Min. order>pcs
Request
Feature
  1. 1/8"NPT & 1/4"NPT & 1/4"E-Z  connect cap available
  2. 100% pure raw material injection
  3. PP white housing have been done 100,000times strict cycle test under 150PSI high water pressure. (conform to NSF test criteria)
  4. Made in Taiwan

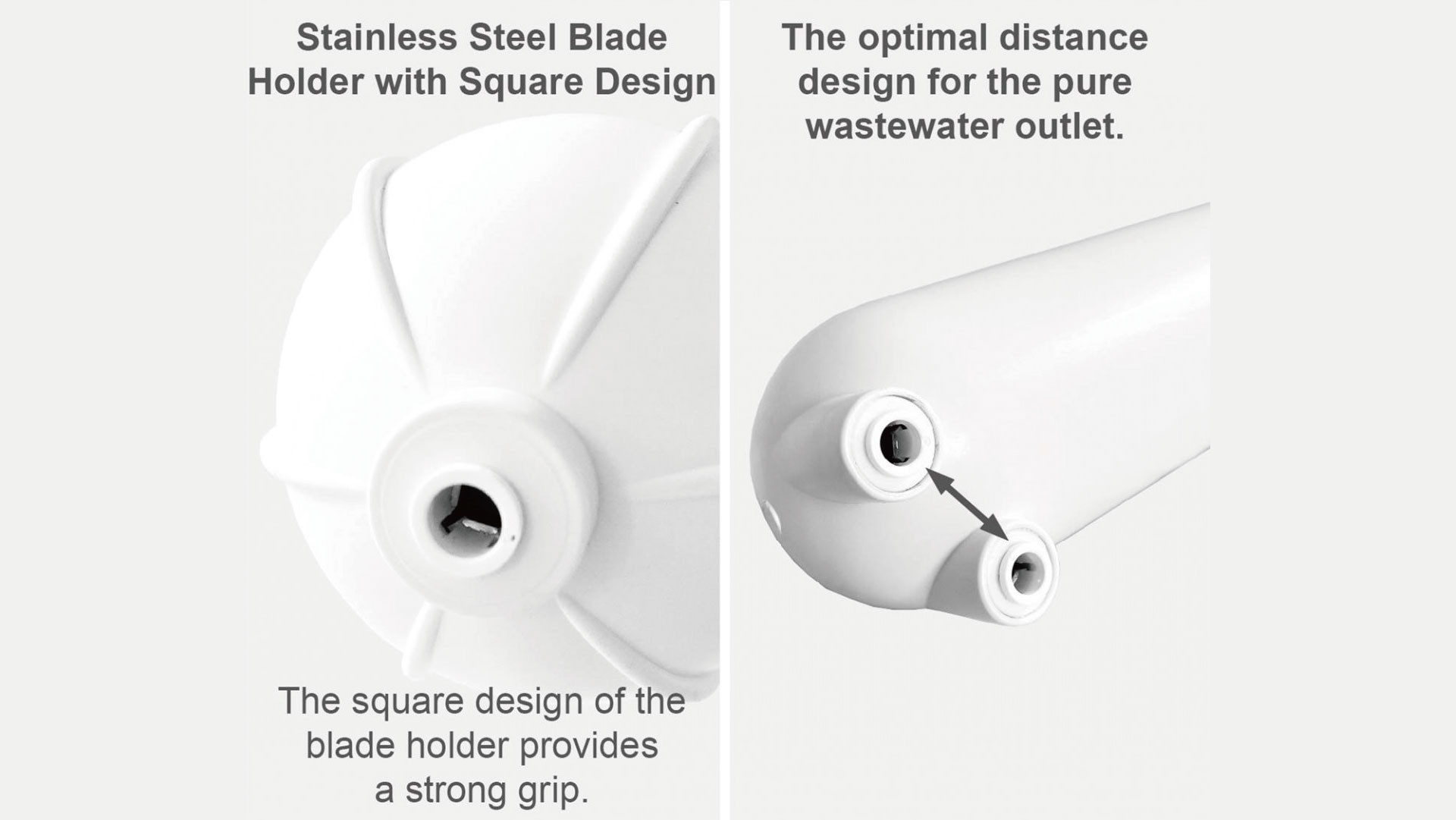

HOUSING OPTIMUM DISTANCE DESIGN BETWEEN PURE WATER OUTLET AND DRAIN WATER OUTLET

HOUSING EPDM O-RING

HOUSING WITH DOUBLE SEAL DESIGN

HOUSING 1/8 NPT & 1/4 NPT & 1/4 E-Z

HOUSING SPECIAL DESIGN FOR SQUARE STAINLESS STEEL 304 KNIFE HOLDER

HOUSING NSF CERTIFIED POLYPROPYLENE(PP) MATERIAL

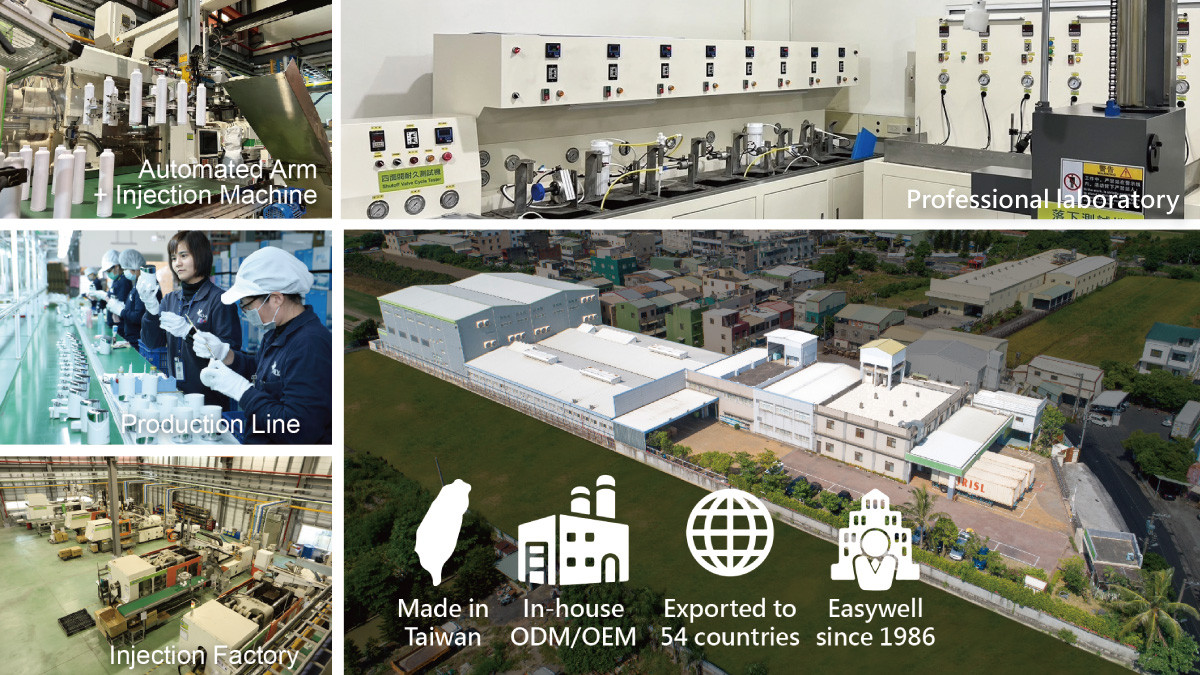

HOUSING QUALITY CONTROL

HOUSING 100% PURE RAW MATERIAL INJECTION

HOUSING BEFORE SHIPMENT ALL PASS 100% LEAKING TEST

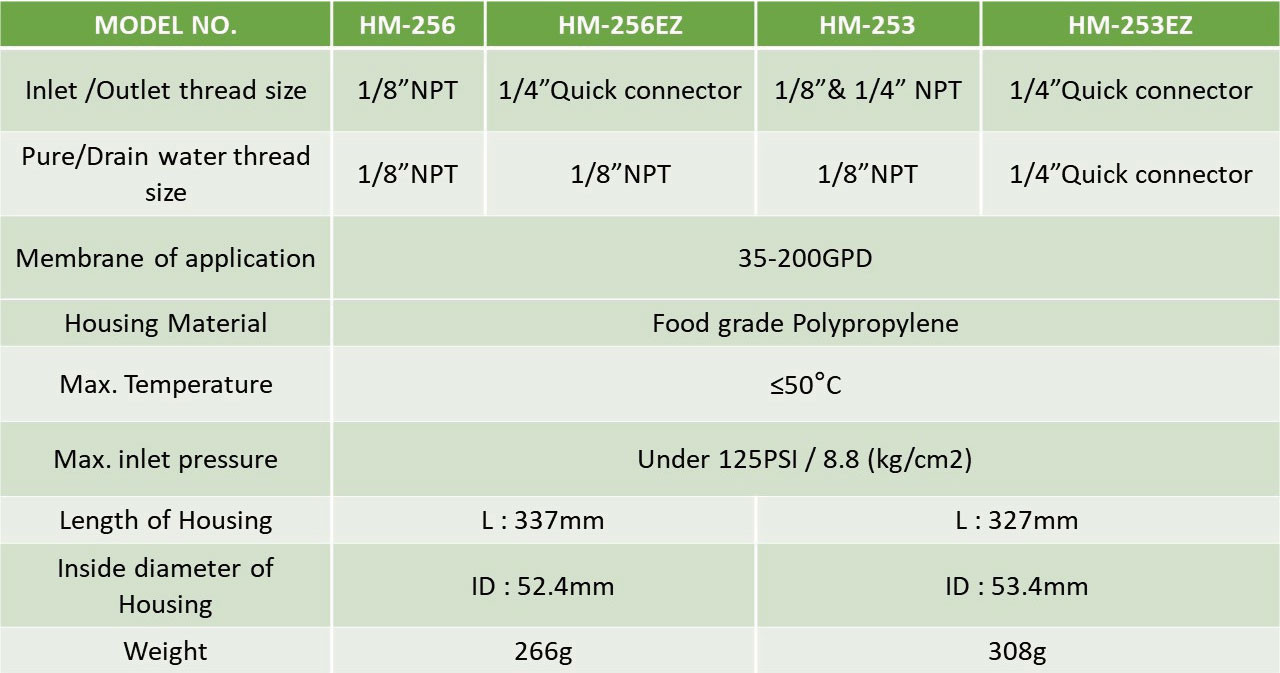

Specification
Model No. Specification Q'TY/CTN Weight (Kgs) Cu'ft
HM-256 1/8"NPT POLYPROPYLENE WHITE CAP, HOUSING LENGTH:336MM,INLET 1/8"NPT (DRAIN &PERMEATE) 35 10.6 2.1

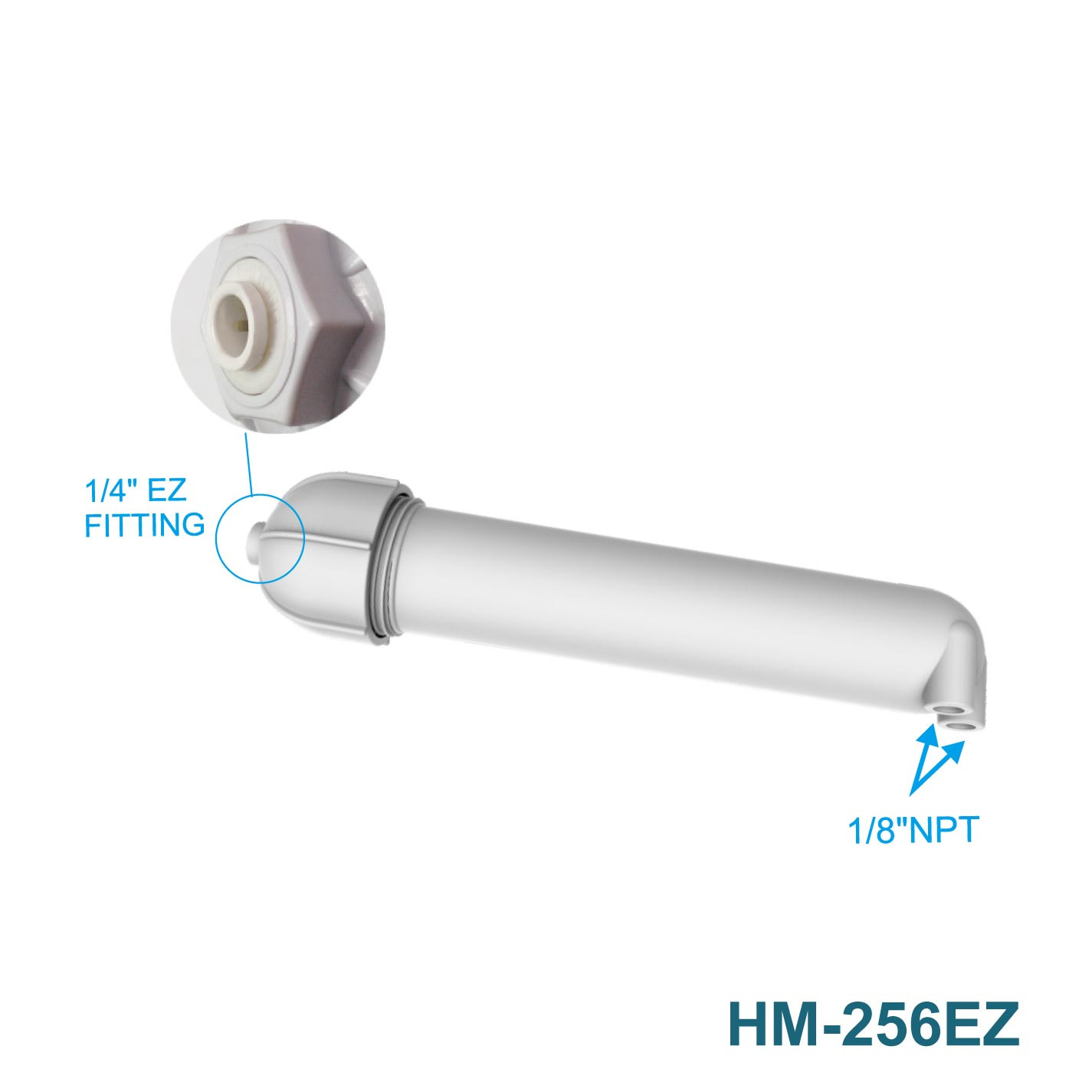

HM-256EZ 1/4"NPT POLYPROPYLENE WHITE CAP, HOUSING LENGTH:336MM,INLET 1/8"NPT (DRAIN &PERMEATE) 35 10.6 2.1

Material : P.P. = Polypropylene(White housing)
