RO-404 | OEM/ODM Customized RO Purifier Water Filter, 4-Stage 50 GPD Under Sink Machines with Standard Export Carton, White
Item No：RO-404
SHARE：
- Four stages filter cartridges
- Without booster pump
- With shut-off valve
- In-line filter, drinking faucet and storage tank are all certified by NSF
- Capacity: 50 GPD
- Waste water ratio: 1:3
- Flow rate : 1.5 liters/min
- Applicable Pressure:50~80PSI
- Please install a pressure reducing valve if the water pressure exceeds 60 PSI
Request
Feature

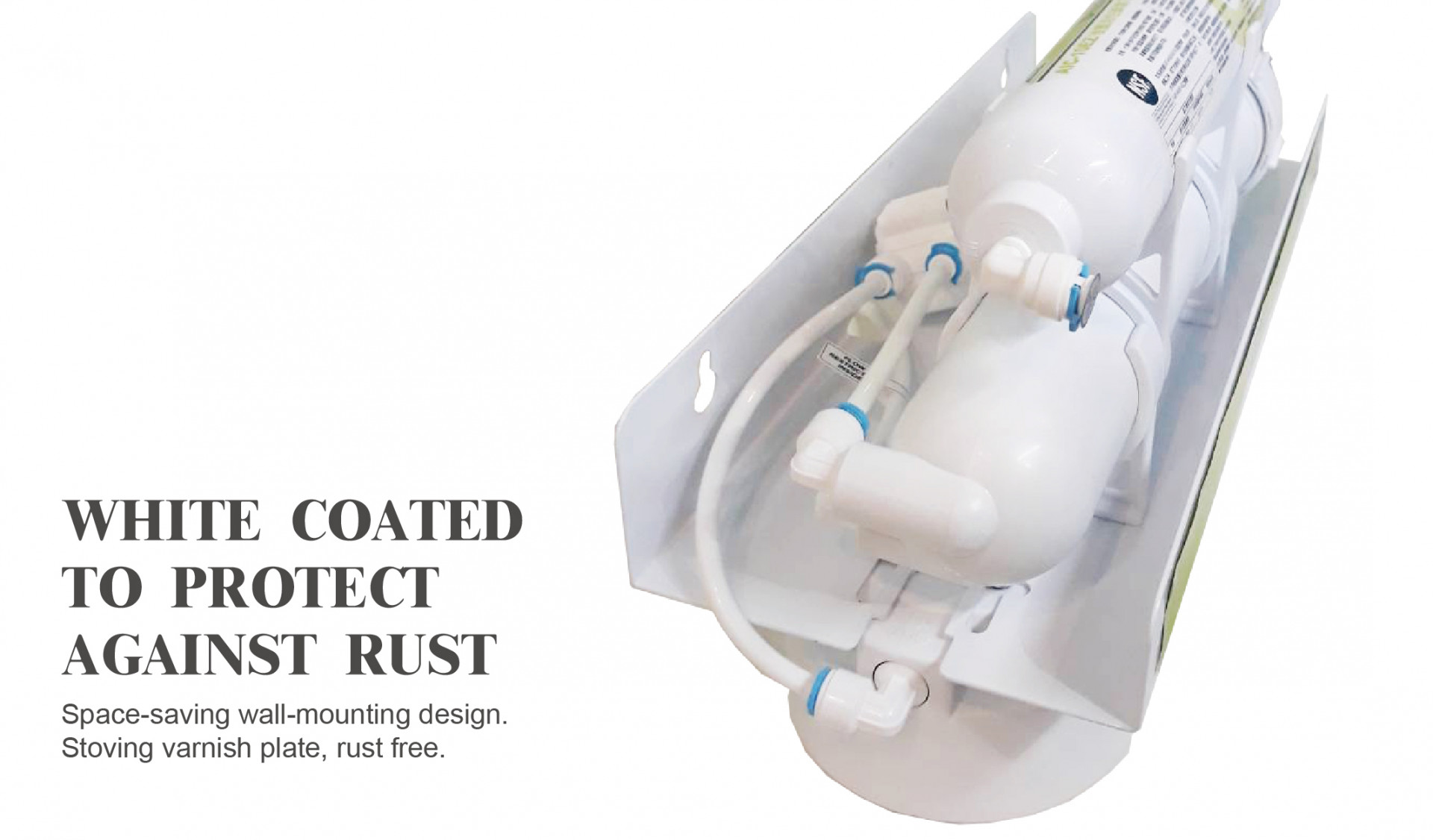

- Powder coating metal bracket to avoid rusting
- The system passed 100,000 times cycle test under 150 PSI water pressure
- Functional components also passed cycle and burst test which conform to NSF test protocol
- Water contact components are produced with all raw materials
- 100% leak test before delivery

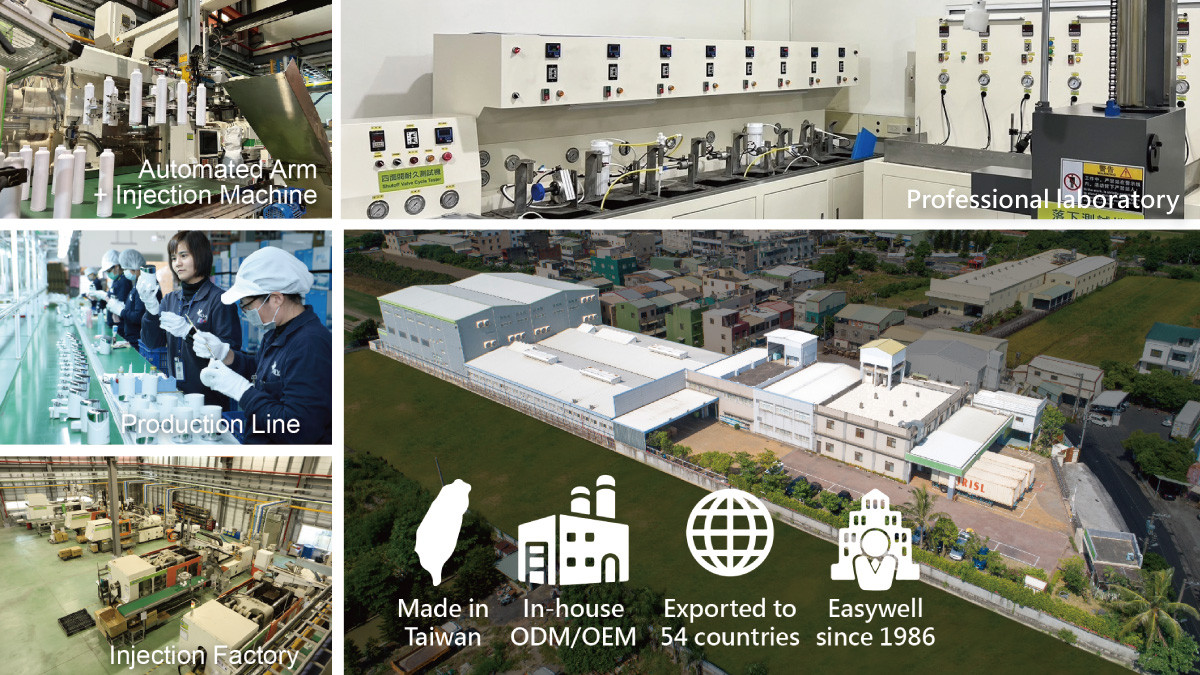

- Made in Taiwan
| ITEMS |
RO-404 |
| Cartridge Stages |
4 Stages |
| Booster Pump | NON |
| Transformer | NON |
| Cartridge Type | 9-7/8" Standard Filter |
| Membrane(gallon) NSF |
50/75/100GPD (NSF) Optional |
| Shutoff Valve | 1/4"FIP |
| Less Drain | 1:3 |
| Water Output Flow | 1.5LPM |
| PE Tube Size |
1/4"OD(6.35φ m/m) |
| Fitting Connect |
1/4"JACO&Quick connector |
| Storage Tank |
4Gallons |
| Applicable pressure | 50-80PSI |
| Dimensions (w/o tank) | L240xW190xH350 (mm) |
| Weight | 4KG |
Specification
| Model No. | Fitting Type | Weight (incl. tank) | Cu'ft |
| RO-404 | JACO | 10kgs | 2.5cu.ft |
| RO-404E | Quick fitting (E-Z) | 10kgs | 2.5cu.ft |
Cartridges:
| Stage | Model No. | Media | 功能 |
| 1st | PP10-05 | PP sediment, 5 µ | Remove dirt, sand and other sediment |
| 2nd | CBC-5CTO | Carbon Block | Reduce chlorine, taste & odor |
| 3rd | MBS-1050 | 50 GPD membrane, NSF | Remove virus, bacteria, heavy metal, etc. |
| 4th | AIC-10 | Coconut GAC, NSF | Have better tasting of water |
| ITEMS |
RO-404 |
| Cartridge Stages |
4 Stages |
| Booster Pump | NON |
| Transformer | NON |
| Cartridge Type | 9-7/8" Standard Filter |
| Membrane(gallon) NSF |
50/75/100GPD (NSF) Optional |
| Shutoff Valve | 1/4"FIP |
| Less Drain | 1:3 |
| Water Output Flow | 1.5LPM |
| PE Tube Size |
1/4"OD(6.35φ m/m) |
| Fitting Connect |
1/4"JACO&Quick connector |
| Storage Tank |
4Gallons |
| Applicable pressure | 50-80PSI |
| Dimensions (w/o tank) | L240xW190xH350 (mm) |
| Weight | 4KG |
Assembly
| Spare parts | Model No. | Spec. |
| Housing | HA1014WW-C | 10" White bowl, with white cap 1/4" NPT |

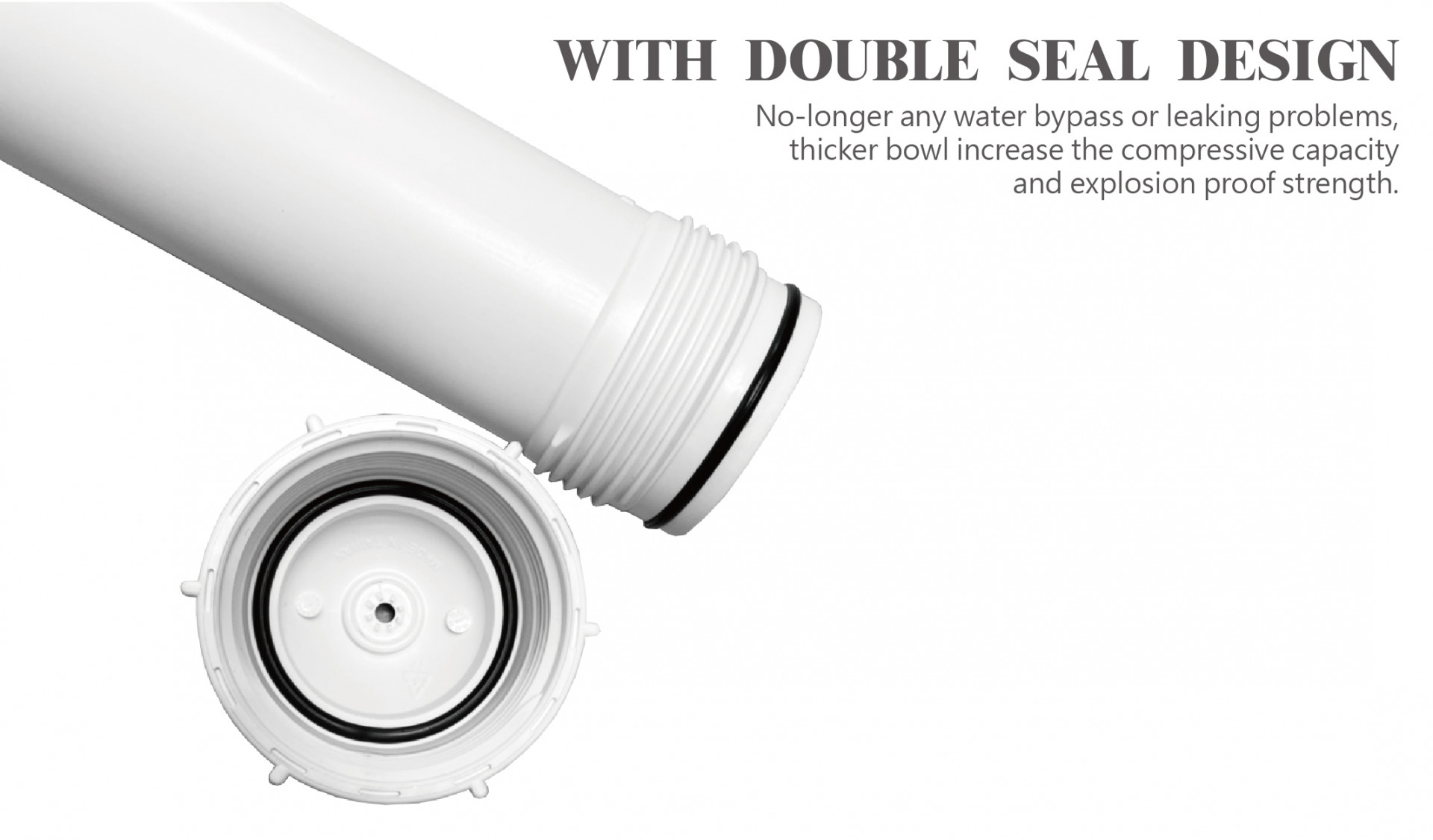

| Membrane housing | HM-256 | White, 1/8"NPTx1/8"NPT |
| Storage tank | TANK-4MW (NSF) | 4 gallon, metal white |
| Shut-off valve | RO-S001 | White, 1/4" Jaco type |
| Drinking faucet | ZWDF-1002 | Tall reach spout, 3" shank, lead-free |
| Flow restrictor | FRB-450 | bead type, 450ml, green color |
Accessories
| Accessories | Model No. | Spec. |
| Water feed adaptor | BV-1414L | 1/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting |
| Wrench | HAN-01W | Plastic White |
| PE tube | PE-14W-NSF | 1/4" tube, white, NSF |
| Ball valve for tank | BV-8P | Plastic, 1/4" Jaco |
Package
| Carton box type | Packing |
| Standard Export Carton | System and tank are packed seperated |
Containers
| Container Dimension | Cu'ft | Quantity |
| 20ft | 1,172 CU'FT | PCS |
| 40ft | 2,385 CU'FT | PCS |
| 40'HQ | 2,690 CU'FT | PCS |
Others
- Quick-fitting type system is optional
- Manual flush valve is optional
Certificates
| Verification Of Conformity With European LVD Directive-(RO-404) | ||
 |
