RO-405 | OEM/ODM Customized Logo RO Purifier Water Filter System, 5-Stage 50 75 100GPD Under Sink Machines with Standard Export Carton, White

Item No:RO-405

SHARE:

  • Five stages filter cartridges
  • Without booster pump
  • With shut-off valve
  • In-line filter, ro membrane and storage tank are all certified with NSF
  • Capacity: 50 GPD
  • Waste water ratio: 1:3
  • Flow rate :1.5 liters/min
  • Applicable Pressure:50~80PSI
  • Please install a pressure reducing valve if the water pressure exceeds 60 PSI.
Color
Dim.
L37xW19xH46(cm)
Quantity
Min. order>pcs
Request
Feature
  1. Membrane housing designed with 2 o-rings to ensure durability and prevent water leak
  2. Powder coating metal bracket to avoid rusting
  3. The system passed 100,000 times cycle test under 150 PSI water pressure
  4. Functional components also passed cycle and burst test which conform to NSF test protocol
  5. Water contact components are produced with all raw materials
  6. 100% leak test before delivery
  7. Made in Taiwan

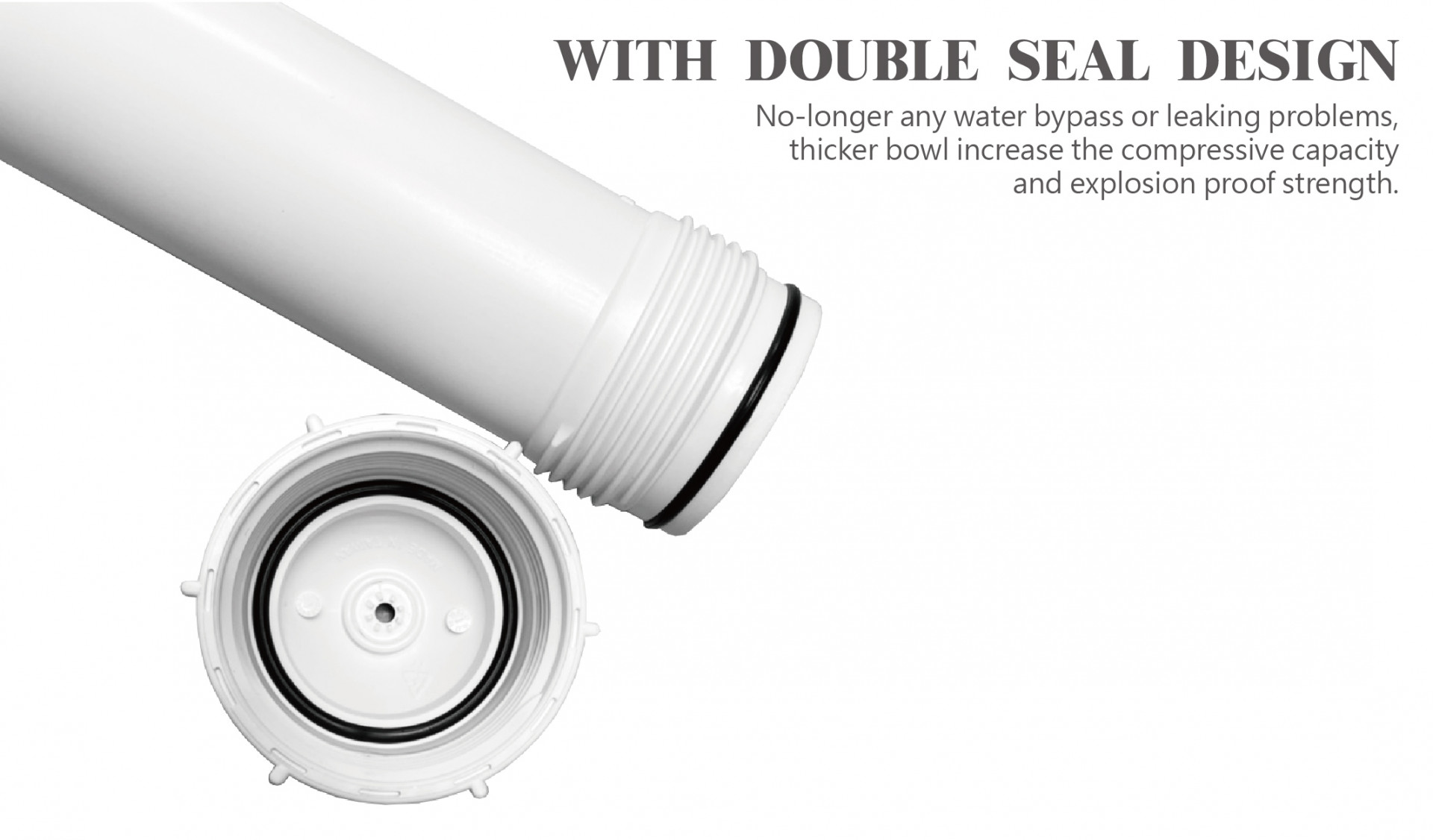

RO SYSTEM WITH DOUBLE SEAL DESIGN

 RO SYSTEM WHITE COATED TO PROTECT AGAINST RUST

RO SYSTEM QUALITY CONTROL

RO SYSTEM 100% PURE RAW MATERIAL INJECTION

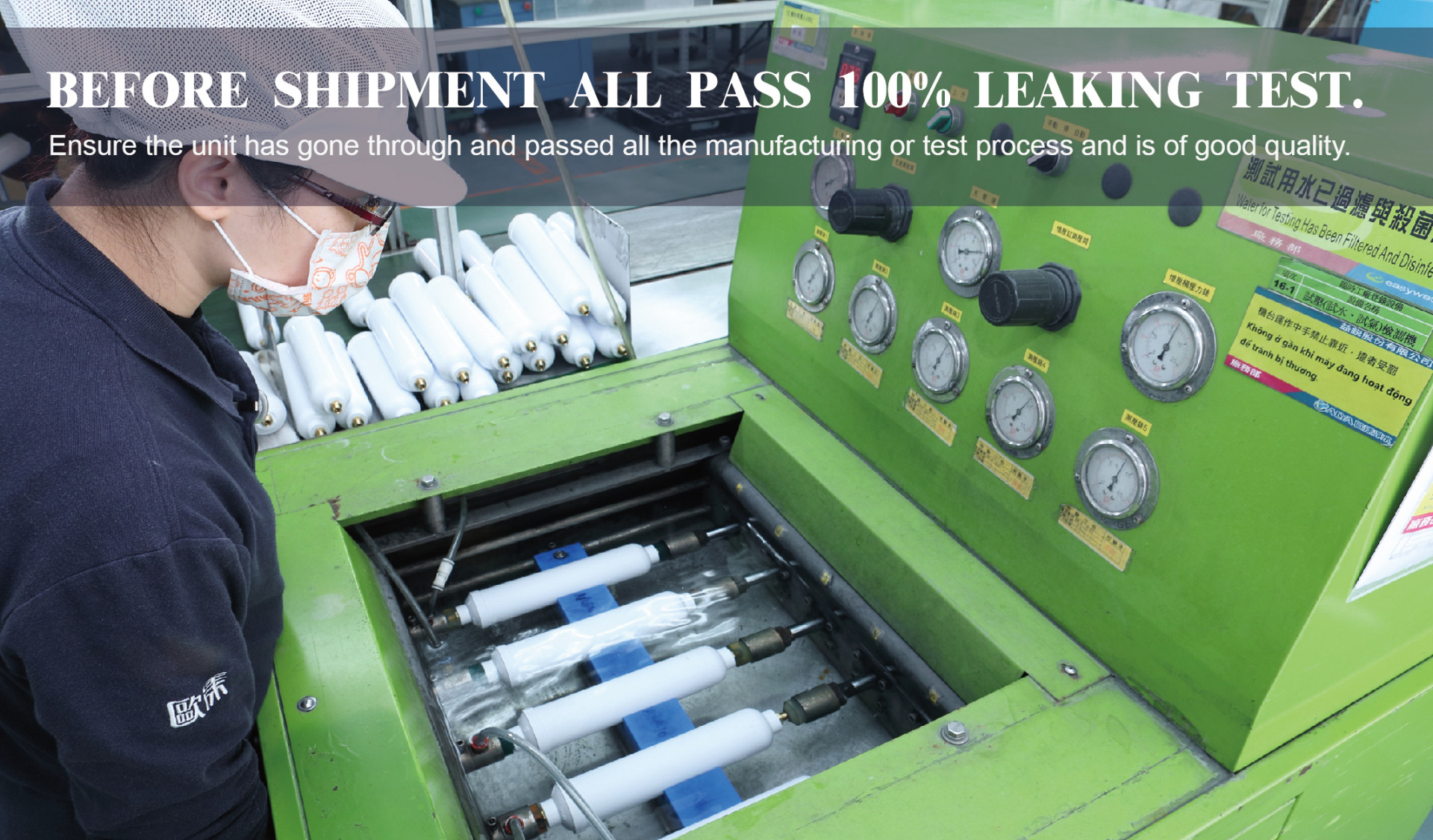

RO SYSTEM BEFORE SHIPMENT ALL PASS 100% LEAKING TEST



ITEMS

RO-405

Cartridge Stages

5 Stages

Booster Pump NON
Transformer NON
Cartridge Type 9-7/8" Standard Filter
Membrane(gallon) NSF

50/75/100GPD (NSF) Optional

Shutoff Valve 1/4"FIP
Less Drain 1:3
Water Output Flow  1.5LPM
PE Tube Size

 1/4"OD(6.35φ m/m)

Fitting Connect

  1/4"JACO&Quick connector

Storage Tank

4Gallons

Applicable pressure 50-80PSI
Dimensions (w/o tank) L370xW190xH460 (mm)
Weight  7 KG
Specification
Model No. Fitting Type flush valve Weight (incl. tank) Cu'ft
RO-405 JACO NO 11kgs 2.5 cu.ft
RO-405E Quick fitting (E-Z) NO 11kgs 2.5 cu.ft
RO-405H JACO Manual flush valve 11kgs 2.5 cu.ft
RO-405HE Quick fitting (E-Z) Manual flush valve 11kgs 2.5 cu.ft



Cartridges:

Stage Model No. Media Function
1st PP10-05 PP sediment, 5 µ Remove dirt, sand and other sediment
2nd CBC-5CTO Carbon Block Reduce chlorine, taste & odor
3rd PP10-01 PP sediment, 1 µ Remove dirt, sand and other sediment
4th MBS-1050 50 GPD membrane, NSF Remove virus, bacteria, heavy metal, etc.
5th AIC-10 Coconut GAC, NSF Have better tasting of water





ITEMS

RO-405

Cartridge Stages

5 Stages

Booster Pump NON
Transformer NON
Cartridge Type 9-7/8" Standard Filter
Membrane(gallon) NSF

50/75/100GPD (NSF) Optional

Shutoff Valve 1/4"FIP
Less Drain 1:3
Water Output Flow  1.5LPM
PE Tube Size

 1/4"OD(6.35φ m/m)

Fitting Connect

  1/4"JACO&Quick connector

Storage Tank

4Gallons

Applicable pressure 50-80PSI
Dimensions (w/o tank) L370xW190xH460 (mm)
Weight  7KG




Assembly

Spare parts Model No. Spec.
Housing HA1014WW-C 10" White bowl, with white cap 1/4" NPT
Membrane housing HM-256  White, 1/8"NPTx1/8"NPT
Storage tank TANK-4MW (NSF) 4 gallon, metal white
Shut-off valve RO-S001 White, 1/4" Jaco type
Drinking faucet ZWDF-1002 Tall reach spout, 3" shank, lead-free
Flow restrictor FRB-450 bead type, 450ml, green color



Accessories

Spare parts Model No. Spec.
Water feed adaptor BV-1414L 1/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting
Wrench HAN-01W Plastic White
PE tube PE-14W-NSF 1/4" tube, white, NSF
Ball valve for tank BV-8P Plastic, 1/4" Jaco



Package

Carton box type Packing
Standard Export Carton System and tank are packed seperated



Containers

Container Dimension Cu'ft Quantity
20ft 1,172 CU'FT 400PCS
40ft 2,385 CU'FT 800PCS
40'HQ 2,690 CU'FT 950PCS



Others

  • Quick-fitting type system is optional
  • Manual flush valve is optional
Certificates
  Verification Of Conformity With European LVD Directive-(RO-405)
