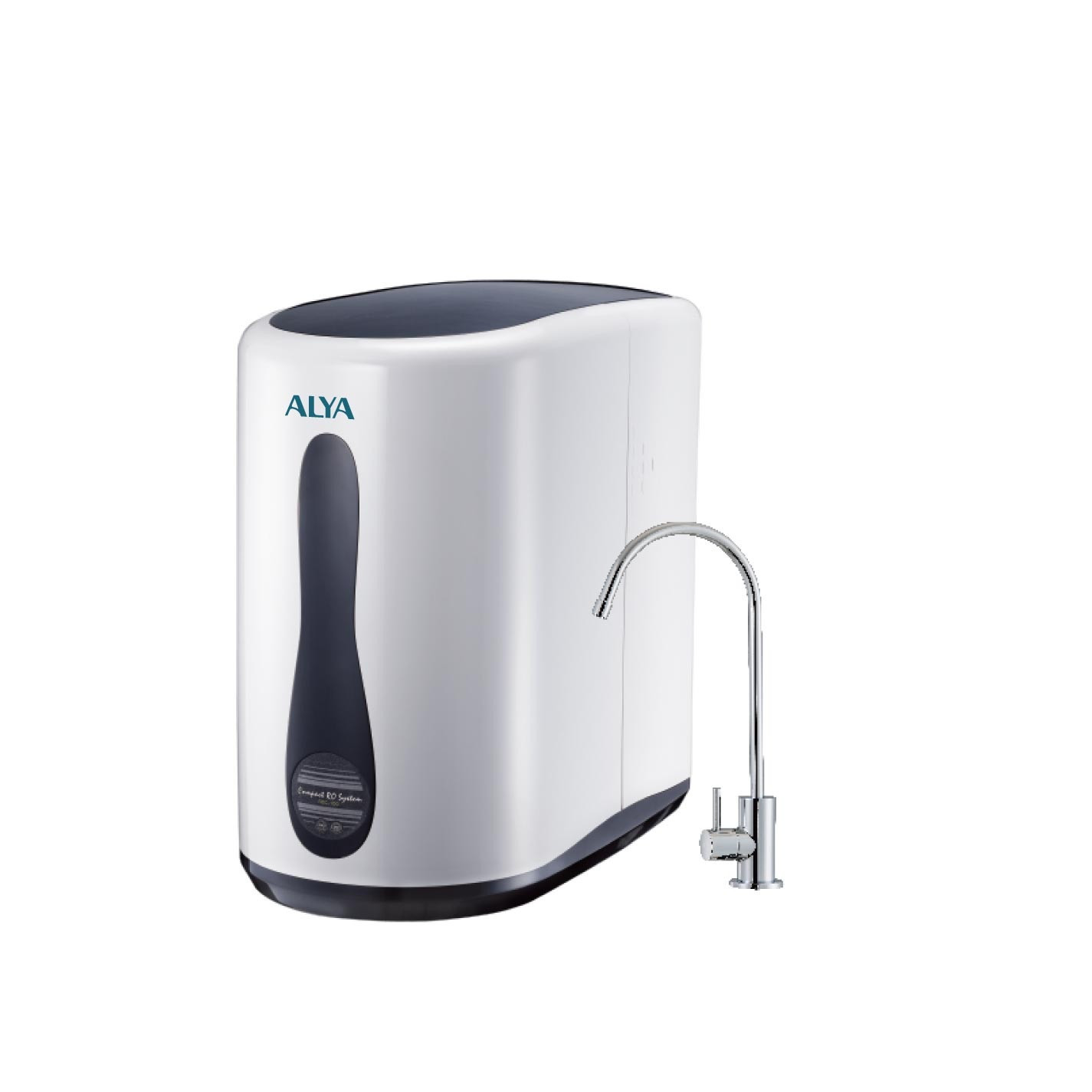

ROC-100 | OEM/ODM Customized Logo Compact RO Purifier Water Filter System, 5-Stage 50 75 100GPD NSF Membrane Under Sink Machine with In-Line Filters
SHARE：
- Under sink compact reverse osmosis system
- Five stages filter cartridges
- Pump: none
- 4-Way shutoff valve
- With NSF certificate: in-line post coconut carbon cartridge, 50GPD membrane, and pressure tank
- Capacity: 50GPD
- Waste water ratio: 1:3
- Pure water flow rate:2.5 LPM
- Operating pressure:50-80 PSI
- Please install a pressure reducing valve if the water pressure exceeds 60 PSI.
- Compact-box design made of ABS plastic steel so it can't rust and easily install. Moreover, it can block insects and dust effectively.
- With 2.2 GPD built-in tank it doesn’t take too much space.
- Membrane housing with double o-ring design and has passed 100,000 times strict cycle testing under 150PSI water pressure and 300 PSI burst test to make sure it’s durable.
- All pass NSF test standard.
- 100% pure raw materials for spare parts contacted water.
- Before shipment all pass 100% leaking test.

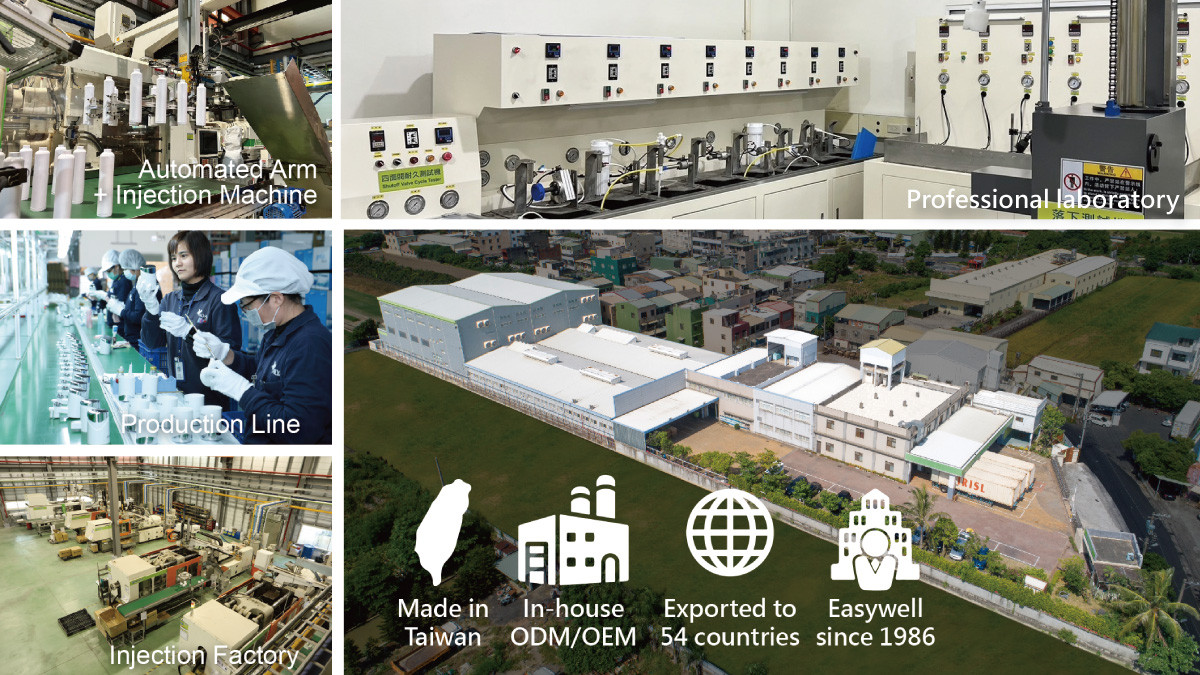

- Made in Taiwan.
|
ITEMS |
RO-100 |
|
Cartridge Stages |
5 Stages |
|
Cartridge Type |
In-line Cartridge |
|
Membrane(gallon) NSF |
50/75/100GPD (NSF) Optional |
|
Booster Pump |
N/A |
|
Transformer |
N/A |
|
Shutoff Valve |
1/4"FIP |
|
Drain Ratio |
1:3 |
|
Water Output Flow |
1.3 LPM |
|
PE Tube Size |
1/4"OD(6.35φ m/m) |
|
Fitting Connect |
1/4" JACO & Quick connector |
|
Storage Tank |
N/A |
|
Applicable Water Pressure |
50-80PSI |
|
Dimensions |
L429xW238xH422 (mm) |
|
Weight |
9 KG |
| Model No. | PUMP | Fitting Type | Weight | Cu'ft |
| ROC-100 | NO | JACO | 10kgs | 2.9 cu.ft |
| ROC-101 | YES | JACO | 11kgs | 2.9 cu.ft |
Cartridges:Function
| Stage | Model No. | Media | Function |
| 1st | AIP-12 | 11" ,PP sediment, 5 µ | Remove dirt, sand and other sediment |
| 2nd | AIC-12 | 11" ,Coconut GAC | Reduce chlorine, taste & odor |
| 3rd | AIC-12 | 11" ,Coconut GAC | Reduce chlorine, taste & odor |
| 4th | MBS-1050 | 50 GPD membrane, NSF | Remove virus, bacteria, heavy metal, etc. |
| 5th | AIC-10 | 10" in-line | Have better tasting of water |
|
ITEMS |
RO-100 |
|
Cartridge Stages |
5 Stages |
|
Cartridge Type |
In-line Cartridge |
|
Membrane(gallon) NSF |
50/75/100GPD (NSF) Optional |
|
Booster Pump |
N/A |
|
Transformer |
N/A |
|
Shutoff Valve |
1/4"FIP |
|
Drain Ratio |
1:3 |
|
Water Output Flow |
1.3 LPM |
|
PE Tube Size |
1/4"OD(6.35φ m/m) |
|
Fitting Connect |
1/4" JACO & Quick connector |
|
Storage Tank |
N/A |
|
Applicable Water Pressure |
50-80PSI |
|
Dimensions |
L429xW238xH422 (mm) |
|
Weight |
9 KG |
Assembly
| Spare parts | Model No. | Spec. |
| Membrane housing | HM-256 | White, 1/8"NPTx1/8"NPT |
| Storage tank | TANK-2MW (NSF) | 2.2 gallon, metal white |
| Shut-off valve | RO-S001 | White, 1/4" Jaco type |
| Drinking faucet | ZWDF-1002 | 8" tall spout, 3" shank, lead-free |
| Flow restrictor | FRB-450 | bead type, 450ml, green color |
Accessories
| Spare parts | Model No. | Spec. |
| Water feed adaptor | BV-1414L | 1/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting |
| PE tube | PE-14W-NSF | 1/4" tube, white, NSF |
| Ball valve for tank | BV-8P | Plastic, 1/4" Jaco |
Package
| Carton box type | Package |
| Export standard carton box | System and tank are packed combined |
Others
￭ Quick-fitting type system is optional
￭ PUMP and VOLTAGE is optional (type : ROC-101)
￭ LED Water quality detection detector is optional (TDS :100ppm)
| Verification Of Conformity With European LVD Directive-(ROC-100) | Patent:D134876(Taiwan)-(ROC-100) | Patent:1280116(China)-(ROC-100) |
 |
 |
 |
