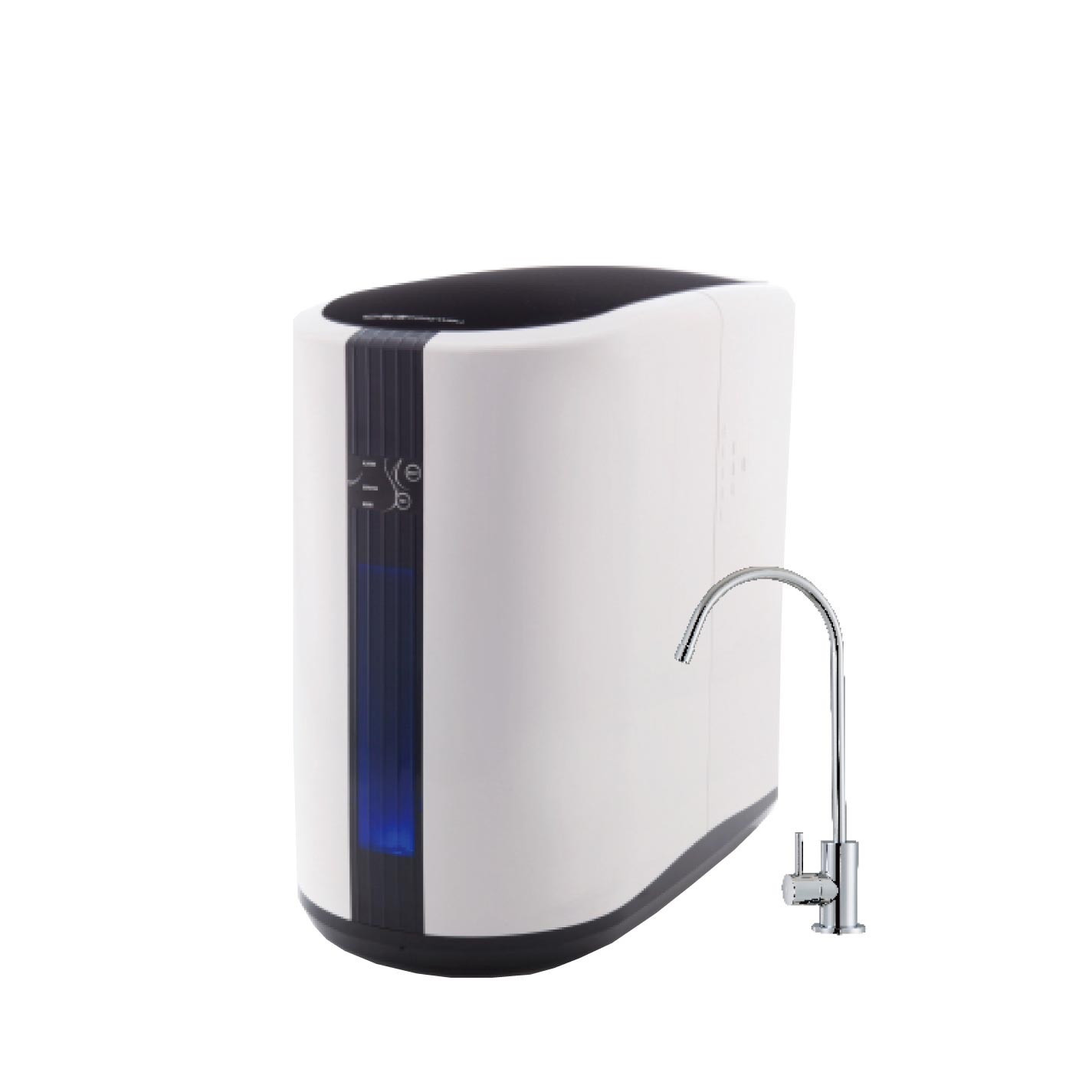

ROC-189 | OEM/ODM Customized Logo Compact RO Purifier Water Filter System, 5-Stage 50 75 100GPD NSF Membrane Under Sink Machine with built-in tank,LED
SHARE：
- Under sink compact reverse osmosis system
- Five stages filter cartridges
- Booster pump with transformer 100V or 240AC to 24DC
- Solenoid valve
- With NSF certificate: in-line post coconut carbon cartridge, 50GPD membrane, and pressure tank
- Capacity: 50GPD
- Waste water ratio: 1:3
- Pure water flow rate: 2.5 LPM
- Operating pressure: ≦50PSI
- Please install a pressure reducing valve if the water pressure exceeds 60 PSI.
- UK/USA type transformers are available please contact us for more information.
- Compact-box design made of ABS plastic steel so it can’t rust and easily install.
- Moreover, it can block insects and dust effectively Equipped with LED blue light makes household appliances being fashionable.
- With 2.2 GPD built-in tank, it doesn’t take too much space.
- With enameled wire transformer to make sure voltage stable, durable, and not being hot easily.
- All pass NSF test standards.
- 100% pure raw materials for spare parts contacted water.
- Before shipment all pass 100% leaking test.
- Made in Taiwan.
|
ITEMS |
ROC-188 |
ROC-189 |
|
Cartridge Stages |
5 Stages |
5 Stages |
|
Cartridge Type |
In-line Cartridge |
In-line Cartridge |
|
Membrane(gallon) NSF |
50/75/100GPD (NSF) Optional |
50/75/100GPD (NSF) Optional |
|
Booster Pump |
N/A |
50GPD 24VDC |
|
Transformer |
N/A |
100~240V,24V,1.5A |
|
Shutoff Valve |
1/4"FIP |
1/4"FIP |
|
LED TDS Water quality |
N/A |
Flowmeter 40ppm |
|
LED Leaking sensor |
N/A |
Transformer powered |
|
Drain Ratio |
1:3 |
1:3 |
|
Water Output Flow |
1.3 LPM |
1.3 LPM |
|
PE Tube Size |
1/4"OD(6.35φ m/m) |
1/4"OD(6.35φ m/m) |
|
Fitting Connect |
1/4" JACO & Quick connector |
1/4" JACO & Quick connector |
|
Storage Tank |
N/A |
N/A |
|
Applicable Water Pressure |
50-80PSI |
≤50PSI |
|
Dimensions |
L429xW238xH422 (mm) |
L429xW238xH422 (mm) |
|
Weight |
9 KG |
11.3KG |
| Model No. | PUMP | Fitting Type | Weight | Cu'ft |
| ROC-188 | NO | JACO | 10kgs | 2.9 cu.ft |
| ROC-189 | YES | JACO | 12.3kgs | 2.9 cu.ft |
Cartridges:
| Stage | Model No. | Media | Function |
| 1st | AIP-12 | 11" ,PP sediment, 5 µ | Remove dirt, sand and other sediment |
| 2nd | AIC-12 | 11" ,Coconut GAC | Reduce chlorine, taste & odor |
| 3rd | AIC-12 | 11" ,Coconut GAC | Reduce chlorine, taste & odor |
| 4th | MBS-1050 | 50 GPD membrane, NSF | Remove , bacteria, heavy metal, etc. |
| 5th | AIC-10 | Coconut GAC, NSF | Have better tasting of water |
|
ITEMS |
ROC-188 |
ROC-189 |
|
Cartridge Stages |
5 Stages |
5 Stages |
|
Cartridge Type |
In-line Cartridge |
In-line Cartridge |
|
Membrane(gallon) NSF |
50/75/100GPD (NSF) Optional |
50/75/100GPD (NSF) Optional |
|
Booster Pump |
N/A |
50GPD 24VDC |
|
Transformer |
N/A |
100~240V,24V,1.5A |
|
Shutoff Valve |
1/4"FIP |
1/4"FIP |
|
LED TDS Water quality |
N/A |
Flowmeter 40ppm |
|
LED Leaking sensor |
N/A |
Transformer powered |
|
Drain Ratio |
1:3 |
1:3 |
|
Water Output Flow |
1.3 LPM |
1.3 LPM |
|
PE Tube Size |
1/4"OD(6.35φ m/m) |
1/4"OD(6.35φ m/m) |
|
Fitting Connect |
1/4" JACO & Quick connector |
1/4" JACO & Quick connector |
|
Storage Tank |
N/A |
N/A |
|
Applicable Water Pressure |
50-80PSI |
≤50PSI |
|
Dimensions |
L429xW238xH422 (mm) |
L429xW238xH422 (mm) |
|
Weight |
9 KG |
11.3KG |
Assembly
| Spare parts | Model No. | Spec. |
| Membrane housing | HM-256 | White, 1/8"NPTx1/8"NPT |
| Storage tank | TANK-2MW (NSF) | 2.2 gallon, metal white |
| Shut-off valve | RO-S001 | White, 1/4" Jaco type |
| Drinking faucet | ZWDF-1002 | 8" tall spout, 3" shank, lead-free |
| Flow restrictor | FRB-450 | bead type, 450ml, green color |
| PUMP | PUMP-5024DC | 50 GPD, 24VDC |
| VOLTAGE | TRAN-22024DC | 220/24VDC,1.2A, ROUND PLUG |
Accessories
| Spare parts | Model No. | Spec. |
| Water feed adaptor | BV-1414L | 1/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting |
| PE tube | PE-14W-NSF | 1/4" tube, white, NSF |
| Ball valve for tank | BV-8P | Plastic, 1/4" Jaco |
Package
| Carton box type | Package |
| Export standard carton box | System and tank are packed combined |
Others
￭ Quick-fitting type system is optional
￭ LED Water quality detection device is optional (TDS :100ppm)
￭ Leaking detector is optional
| Verification Of Conformity With European LVD Directive-(ROC-189) | Patent:1849079(China)-(ROC-189) | Taiwan Excellence Award 2013-(ROC-189) |
 |
 |
 |
