ROQ-3816H | OEM/ODM Customized Logo RO Purifier Water Filter System, 65-Stage 50 75 100GPD NSF Membrane Quick Change Under Sink Machine with Pump

Item No:ROQ-3816(H)

SHARE:

  • Patented quick change filter design
  • Six stages filter cartridges
  • With booster pump/transformer(110V or 220V 24VDC)
  • With Pressure gauge
  • With solenoid valve
  • Capacity: 50gallons per day
  • Waste water ratio: 1:3
  • Flow rate : 1.5liter/min
  • Applicable Pressure:≦50PSI
  • Please install a pressure reducing valve if the water pressure exceeds 60 PSI.
Color
Dim.
L30xW17xH42 (cm)
Quantity
Min. order>pcs
Request
Feature
  1. Equipped with a pressure gauge, easy to monitor the condition of the machine
  2. Quick change filter design, easy to replace the filter cartridge
  3. In-line filter, R.O. membrane, and storage tank through NSF Certification.
  4. STAND TYPE BRACKET, wall-mounting/stand design
  5. EZ quick connect connector design, easy DIY to install and replace by yourself
  6. Using the Magnet Wire transformer to ensure stable voltage,
  7. The membrane housing has double O-ring design to ensure durability and no leakage
  8. Powder steel plate coating, it is not easy to rust
  9. Completed set & functional components have been passed 300 PSI (15 minutes)~500 PSI (instantaneous) burst test & 100,000 times cycle test under 150 PSI water pressure(conform to NSF test criteria)
  10. 100% pure raw materials for spare parts contacted water.
  11. 100% Factory Tested
  12. Made in Taiwan

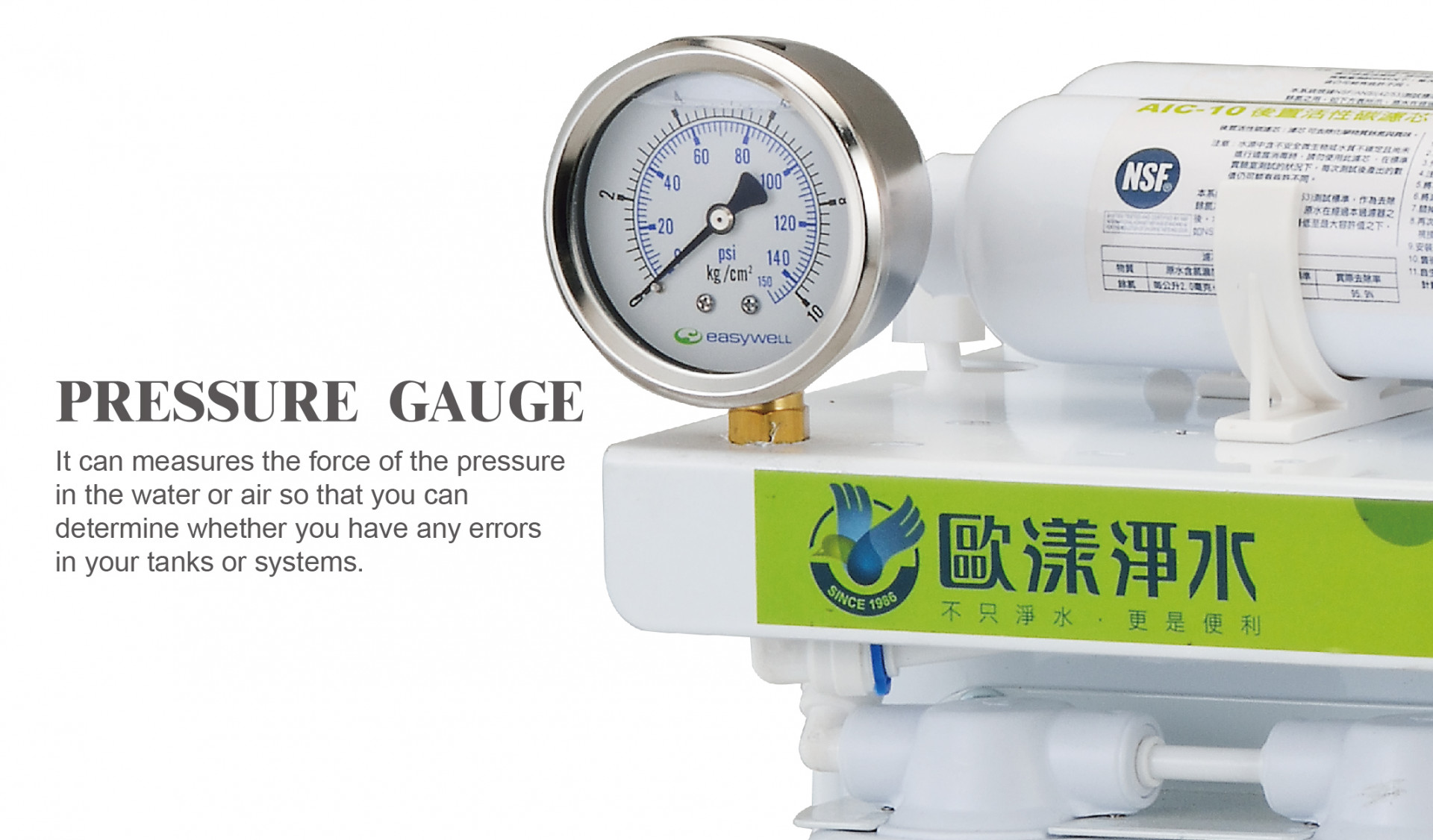

RO SYSTEM PRESSURE GAUGE

RO SYSTEM QUICK CHANGE CARTRIDGE DESIGN

RO SYSTEM NSF CERTIFICATED WATER PARTS

RO SYSTEM WHITE COATED TO PROTECT AGAINST RUST

RO SYSTEM EZ QUICK CONNECTOR DESIGN

RO SYSTEM MAGNET WIRE TRANSFORMER

RO SYSTEM WITH DOUBLE SEAL DESIGN

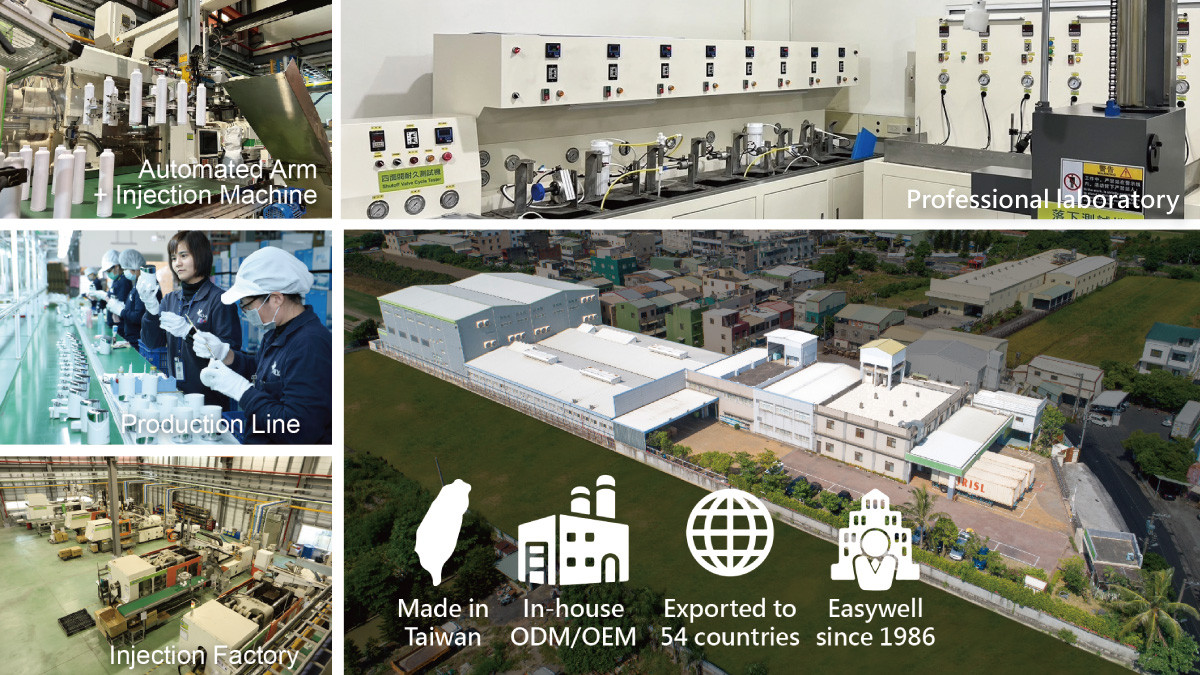

QUALITY CONTROL

100% PURE RAW MATERIAL INJECTION

BEFORE SHIPMENT ALL PASS 100% LEAKING TEST

Specification
Model No. Fitting Type Weight (incl. tank) Cu'ft
ROQ-3816(H) JACO 10 kgs 1.1 cu.ft



Cartridges:

Stage Model No. Media Function
1st QCC-10P PP sediment, 5 µ Remove dirt, sand and other sediment
2nd QCC-10C GRANULAR ACTIVATED CARBON (GAC)   Redue chlorine, taste & odor
3rd QCC-10P PP sediment, 5 µ Remove dirt, sand and other sediment
4th MBS-1050NSF 50 GPD membrane, NSF Remove virus, bacteria, heavy metal, etc.
5th AIC-10FI Far infrared ball Enables the water into small molecule groups and increase the oxygen content of water
6th AIC-10NSF Coconut GAC, NSF Have better tasting of water


Assembly

Spare parts Model No. Spec.
Storage tank TANK-4MW (NSF) 4 gallon, metal white
SOLENOID VALVES SD-11024/22024 White, 1/4" Jaco type
Drinking faucet ZWDF-1002 Quarter-turned spout, 3" shank, lead-free
Flow restrictor FRB-450 bead type, 450ml, green color
PUMP PUMP-5024DC 50 GPD, 24VDC
VOLTAGE TRAN-22024DC 100~240/24VDC,1.2A, ROUND PLUG



Accessories

Spare parts Model No. Spec.
Water feed adaptor BV-1414L 1/4" ball valve with 1/2"MIPx1/2"FIP water feed fitting
PE tube PE-14W-NSF 1/4" tube, white, NSF
Ball valve for tank BV-8P Plastic, 1/4" Jaco



Package

Carton box type Package
Export standard carton box System and tank are packed together


Containers

Container Dimension Cu'ft Quantity
20ft 1,172 CU'FT 380PCS
40ft 2,385 CU'FT 755PCS
40'HQ 2,690 CU'FT 870PCS



Others

Quick-fitting type system is optional
Manual flush valve is optional
Pressure gauge is optional

Certificates
  Taiwan Excellence Award 2016
ROQ-3816(H)
