COMPACT WATER PURIFIER

Item No:CTME-301

SHARE:

  • Counter top water filter
  • Twin stage quick change filter
  • Ultrafiltration with silver impregnated coconut GAC
  • With LED device, remind you to replace filters
  • Battery supply1.5V*2pcs, LR03
  • Flow rate1.3 LPM / 40PSI
  • Filtration accuracy:0.15 µm
Dim.
L26xW11xH33.4 (cm)
Quantity
Min. order>pcs
Request
Feature
  1. Quick change filter, easy changing without tool;installing in 3 minutes and replacing in 6 seconds
  2. Filtration accuracy:0.15 um
  3. With NSF hollow fiber
  4. Remove 99% microorganisms, bacteria and cysts
  5. Drink directly
  6. With LED device, remind you to replace filters; Sleep device performance design to extend battery life
  7. With silver impregnated coconut carbon; Remove chemical, chlorine and odor
  8. Full cap design; prevent the insects
  9. Completed set & functional components have been passed burst test & 100,000 times cycle test under 150 PSI water pressure by NSF International against NSF/ANSI standard.
  10. All food grade material.
  11. 100% Factory Tested
  12. Made in Taiwan





WATER PURIFIER NO TOOLS NEEDED FOR CARTRIDGE EXCHANGE

WATER PURIFIER SMART LED INDICATOR

WATER PURIFIER SEALED DESIGN

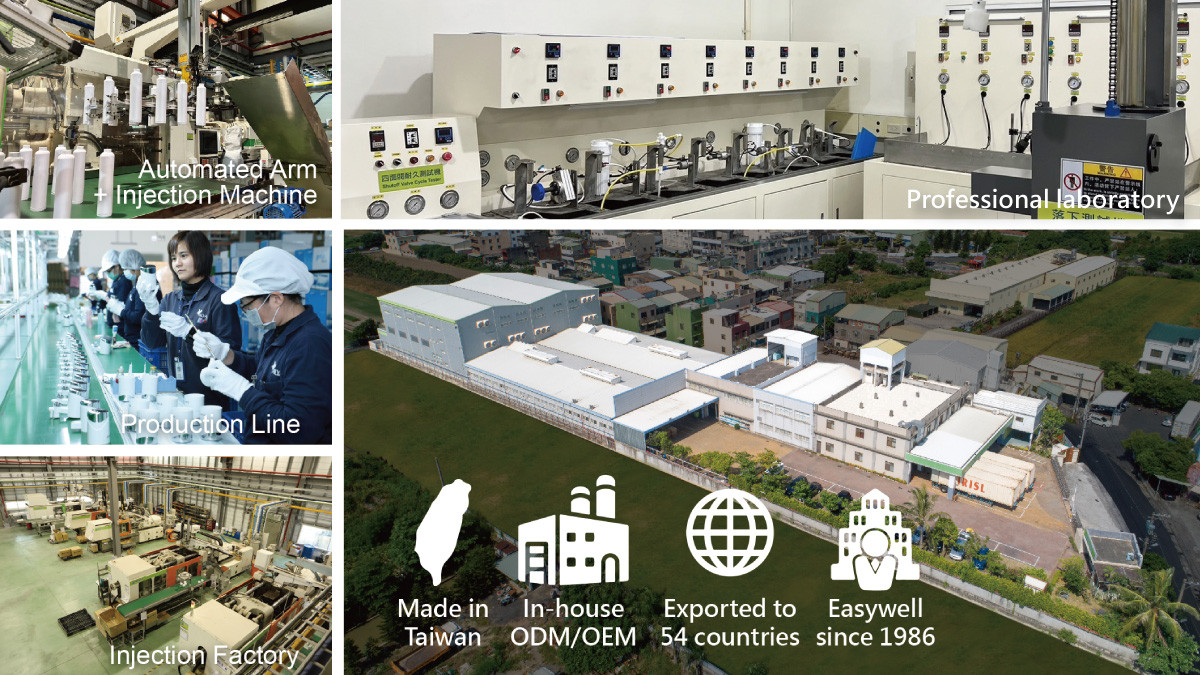

QUALITY CONTROL

100% PURE RAW MATERIAL INJECTION

BEFORE SHIPMENT ALL PASS 100% LEAKING TEST

Specification
Model No. Type LED Monitor Filter Package Weight Measurement
CTM-300 Counter top no 1st: PP sediment
2nd: Hollow fiber+Silver carbon
4 pcs 11kgs 2.4 cu.ft
CTME-301 Counter top yes 1st: PP sediment
2nd: Hollow fiber+Silver carbon
4 pcs 11kgs 2.4 cu.ft



Cartridges(optional):

Model No. Media Function
QCC-10P PP sediment, 5 µ Remove dirt, sand and other sediment
QCC-10C Coconut GAC Reduce chlorine, taste & odor
QCC-10USC Hollow fiber+Silver carbon Remove bacteria, viruses, impurities, organic matter, residual chlorine, pesticides, and odors



Accessories

Spare parts Model No. Spec.
Diverter valve DVB-38CQ 3/8" Quick Connector, Brass
External Faucet Adapter ETA-02 55/64"-27 with stainless steel collar
Internal Faucet Adapter AD1C+AD2C 15/16"-27 & 13/16"-27 * 55/64"-27, Brass
PE TUBE PE-14W-NSF PE 1/4" tube, white,NSF



Containers

Container Dimension Cu'ft Quantity
20ft 1,172 CU'FT PCS
40ft 2,385 CU'FT PCS
40'HQ 2,690 CU'FT PCS



Others

  • Metal bracket is optional
Certificates
Patent: D134874 (Taiwan)-(CTME-301) Patent: 1214288(China)-(CTME-301) Taiwan Excellence Award 2013-(CTME-301)
