CWF-A201CW | OEM/ODM Customized Counter-top Water Filter, Desktop 2-stage water purifier, Clear & White Housing, Activated Carbon Water Purification
Item No：CWF-A201CW
SHARE：

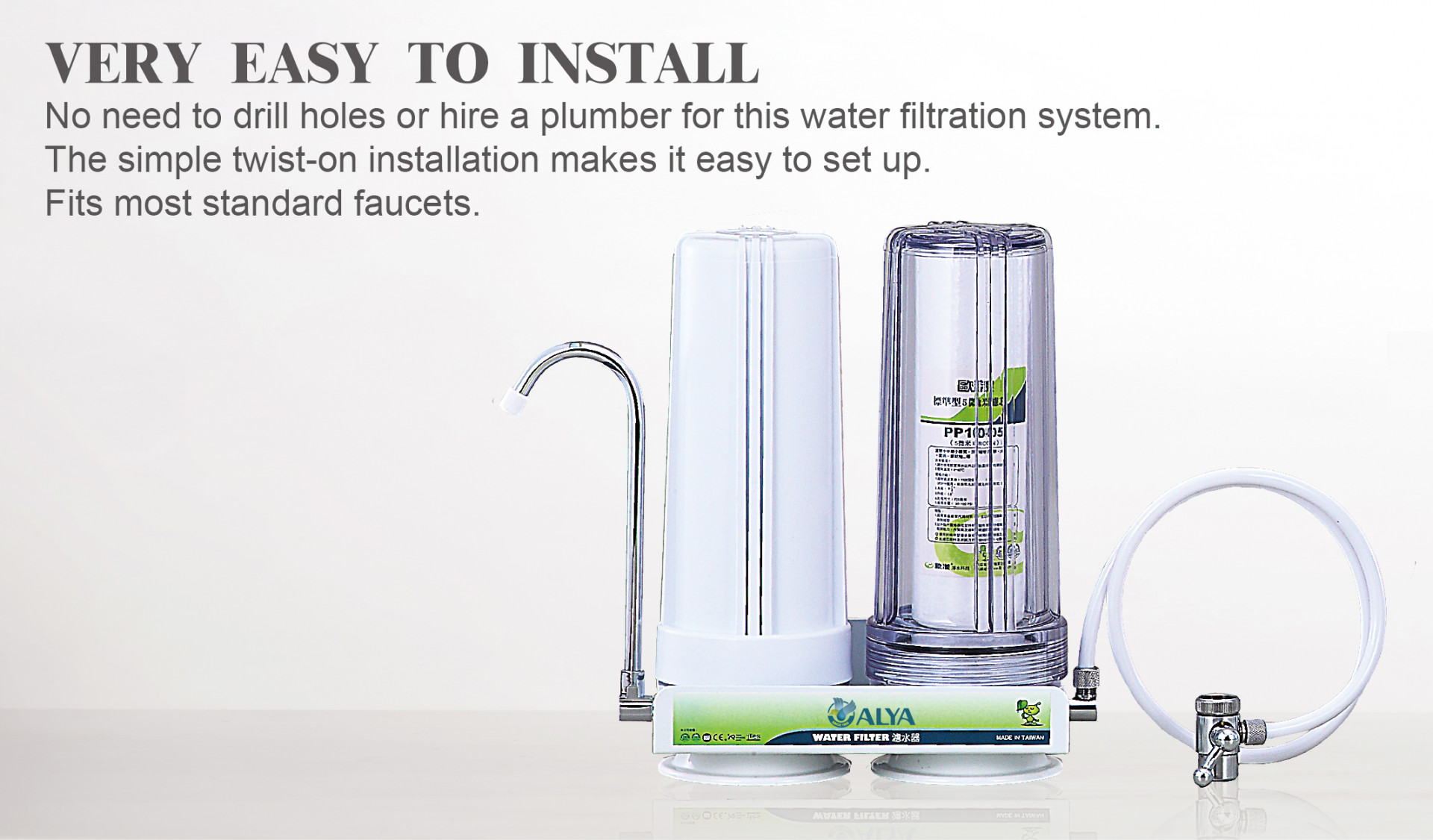

- Countertop design
- With 9-7/8" Standard filter
- With 10" AS transparent housing and white PP housing
- Pure water flow rate:1.4 LPM
Request
Feature
- 10'normal cartridge design let you can choose a cartridge with diverse function you request
- 100% brass diverter valve with the design of large water flow. Besides, internal water-stop structure is designed with Teflon spherical material to ensure our products is non-toxic and resistant
- PVC tube is non-toxic, non-odor and non-faded
- Membrane housing has passed 100,000 times strict cycle testing under 150PSI water pressure and 300 PSI burst test to make sure it's durable.
- All pass NSF test standard.
- 100% pure raw materials for spare parts contacted water.
- Before shipment all pass 100% leaking test
- Made in Taiwan
| ITEMS |
CWF-A201CW |
| Cartridge Stages |
2 Stage |
| Cartridge Type | 9-7/8” Standard cartridge |
| Housing Type |
10” Transparent Bowl+ White bowl |
| Inlet/Outlet Port |
1/4" NPT |
| Flow Rate |
1.4 GPM |
| Tube Size | PVC 3/8"OD(9.5φ m/m) x 1 meter |
| Inlet Adapter | Diverter valve 55/64”-27 |
| Dimensions |
L350xW130xH320 (mm) |
| Weight |
3 KG |
Specification
| Model No. | Stage | Housing | Packing | Weight | Cu'ft |
| CWF-A201CW | Twin | AS Clear+PPWhite | 8 pcs | 13kgs | 2.1 cu.ft |
| CWF-A201WW | Twin | PP White | 8 pcs | 13kgs | 2.1 cu.ft |
Cartridges(optional):
| Model No. | Media | Function |
| PP10-05 | PP sediment, 5 µ | Remove dirt, sand and other sediment |
| CBC-5CTO | Carbon Block | Reduce chlorine, taste & odor |
| CC-5C | Coconut GAC | Reduce chlorine, taste & odor |
| CC-5R | Resin | Reduce scale |
| ITEMS |
CWF-A201CW |
| Cartridge Stages |
2 Stage |
| Cartridge Type | 9-7/8” Standard cartridge |
| Housing Type |
10” Transparent Bowl+ White bowl |
| Inlet/Outlet Port |
1/4" NPT |
| Flow Rate |
1.4 GPM |
| Tube Size | PVC 3/8"OD(9.5φ m/m) x 1 meter |
| Inlet Adapter | Diverter valve 55/64”-27 |
| Dimensions |
L350xW130xH320 (mm) |
| Weight |
3 KG |
Assembly
| Spare parts | Model No. | Spec. |
| Housing | HA1014CW-C OR HA1014WW-C | 10" PP White or Clear Housing, 1/4" White Flat Cap |
| Diverter valve | DVB-38CQ | 3/8" Quick Connector, Brass |
| Water inlet fitting | C-21-1 | 1/4"MIP, Brass |
| Water outlet fitting | C-24 | 1/4"MIPx3/8"BARB, Brass |
| Spout | CS-8-2-OW | 8" Curved Spout With 2 O-Ring, Copper |
Accessories
| Spare parts | Model No. | Spec. |
| External Faucet Adapter | ETA-02 | 55/64"-27 with stainless steel collar |
| Internal Faucet Adapter | AD1C+AD2C | 15/16"-27 & 13/16"-27 * 55/64"-27, Brass |
| Wrench | HAN-01 | Plastic, White |
| PVC tube | PVC-14W | PVC 1/4" tube, white |
Containers
| Container Dimension | Cu'ft | Quantity |
| 20ft | 1,172 CU'FT | PCS |
| 40ft | 2,385 CU'FT | PCS |
| 40'HQ | 2,690 CU'FT | PCS |
Others
- 1/4"Elbow for in/outlet is optional
- Mounting bracket is optional
Certificates
Technic support and Download
