CWF-T101 | OEM/ODM Customized Counter-top Water Filtration System with Stainless steel housing, Single-Stage Desktop Water Purification
Item No：CWF-T101
SHARE：
- Countertop design
- Stainless steel housing
- Equipped with a normal cartridge
- Dual function for counter-top or under sink of 1/4" base
- Air release device is available
- Pure water flow rate:2 LPM
Request
Feature
- With stainless steel housing and black base
- 10'normal cartridge design let you can choose a cartridge with diverse function you request
- 100% brass diverter valve with the design of large water flow. Besides, internal water-stop structure is designed with Teflon spherical material to ensure our products is non-toxic and resistant
- PVC tube is non-toxic, non-odor and non-faded
- Membrane housing has passed 100,000 times strict cycle testing under 150PSI water pressure and 300 PSI burst test to make sure it's durable.
- All pass NSF test standard.
- 100% pure raw materials for spare parts contacted water.
- Before shipment all pass 100% leaking test

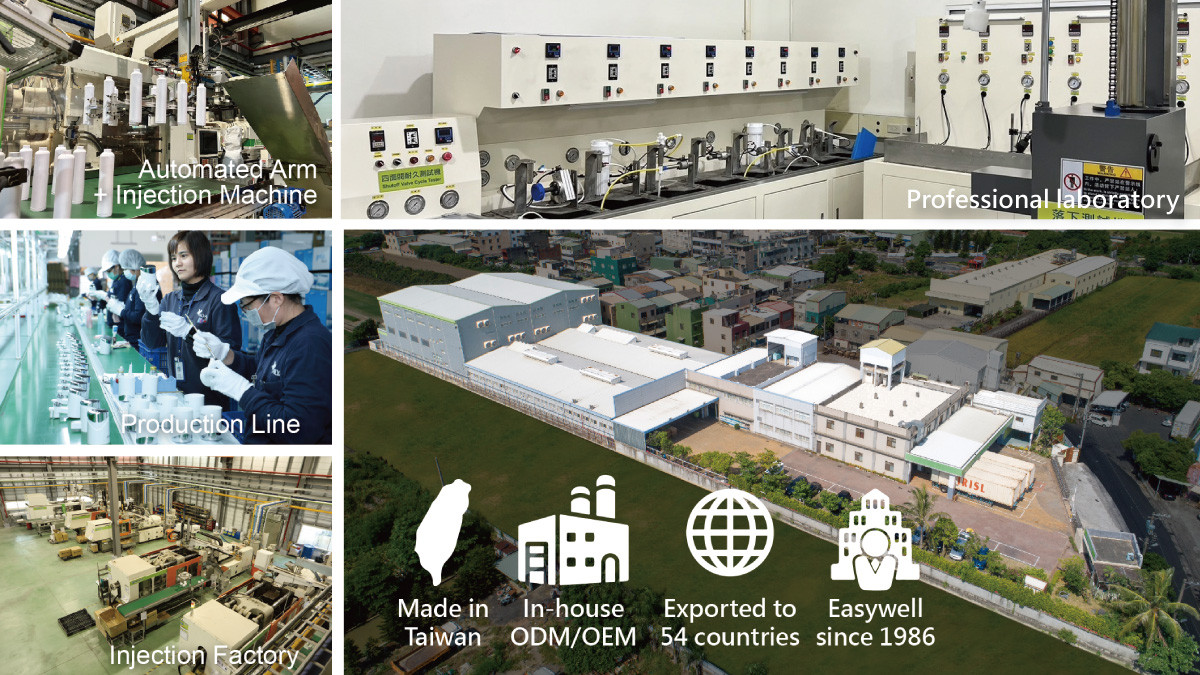

- Made in Taiwan
Specification
| Model No. | Stage | Housing | Package | Weight | Measurement |
| CWF-T101 | Single | Stainless steel | 8 pcs | 12kgs | 1.4 cu.ft |
Cartridges(optional):
| Model No. | Media | Function |
| PP10-05 | PP sediment, 5 µ | Remove dirt, sand and other sediment |
| CBC-5CTO | Carbon Block | Reduce chlorine, taste & odor |
| CC-5C | Coconut GAC | Reduce chlorine, taste & odor |
Assembly
| Spare parts | Model No. | Function |
| Housing | HT10S | 10" S.S. Housing |
| Diverter valve | DVB-38CQ | 3/8" Quick Connector, Brass |
| Water inlet fitting | C-21-1 | 1/4"MIP, Brass |
| Water outlet fitting | C-24 | 1/4"MIPx3/8"BARB, Brass |
| Spout | CS-8-2-OW | 8" Curved Spout With 2 O-Ring, Copper |
Accessories
| Spare parts | Model No. | Function |
| External Faucet Adapter | ETA-02 | 55/64"-27 with stainless steel collar |
| Internal Faucet Adapter | AD1C+AD2C | 15/16"-27 & 13/16"-27 * 55/64"-27, Brass |
| Wrench | HAN-01 | Plastic, White |
| Tube | PVC-38W | PVC 3/8" tube, white, 3 feet |
Containers
| Container Dimension | Cu'ft | Quantity |
| 20ft | 1,172 CU'FT | PCS |
| 40ft | 2,385 CU'FT | PCS |
| 40'HQ | 2,690 CU'FT | PCS |
Others
- Air release device is optional
- Black base is optional
