ROF-700 | OEM/ODM Customized Logo Tankless RO,Direct Flow RO Purifier Water Filter System, 5-Stage 400GPD NSF Membrane Compact Under Sink Machine with

Item No:ROF-700

SHARE:

  • Under-sink type
  • Without storage tank
  • Five stages filter cartridges
  • With booster pump/transformer(110V or 220V 24VDC)
  • With shut-off valve

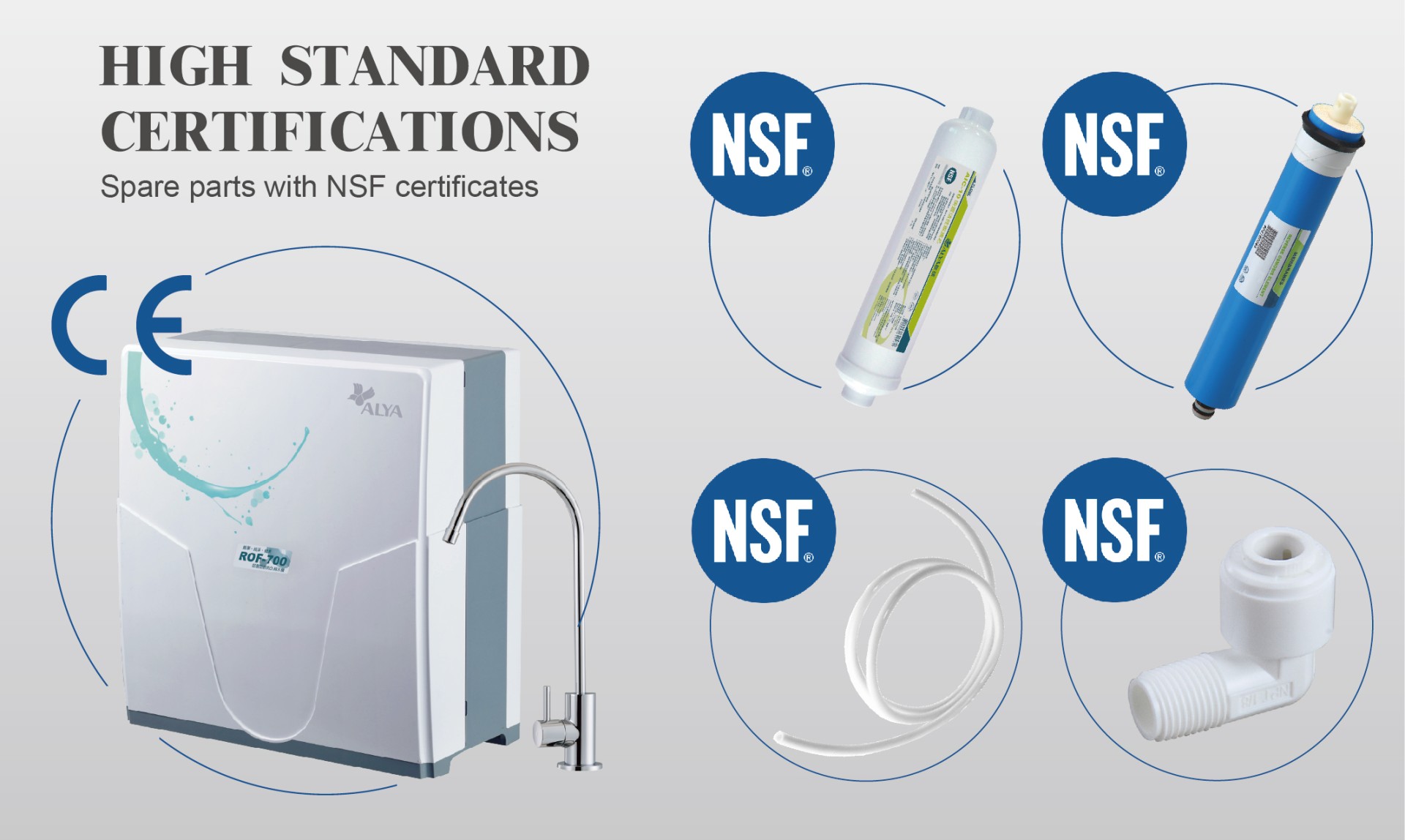

  • NSF certification for 10" in-line GAC filter,membrane
  • Capacity: 400GPD
  • Waste water ratio: 1:1
  • Flow rate : 1.3LPM
  • Applicable Pressure:≦50PSI
  • Please install a pressure reducing valve if the water pressure exceeds 60 PSI.
Dim.
L38xW19xH41 (cm)
Quantity
Min. order>pcs
Request
Feature

  1. ABS material compact casing designed to prevent rusting. Easy to disassemble the casing which also can effectively block mosquitoes and dust

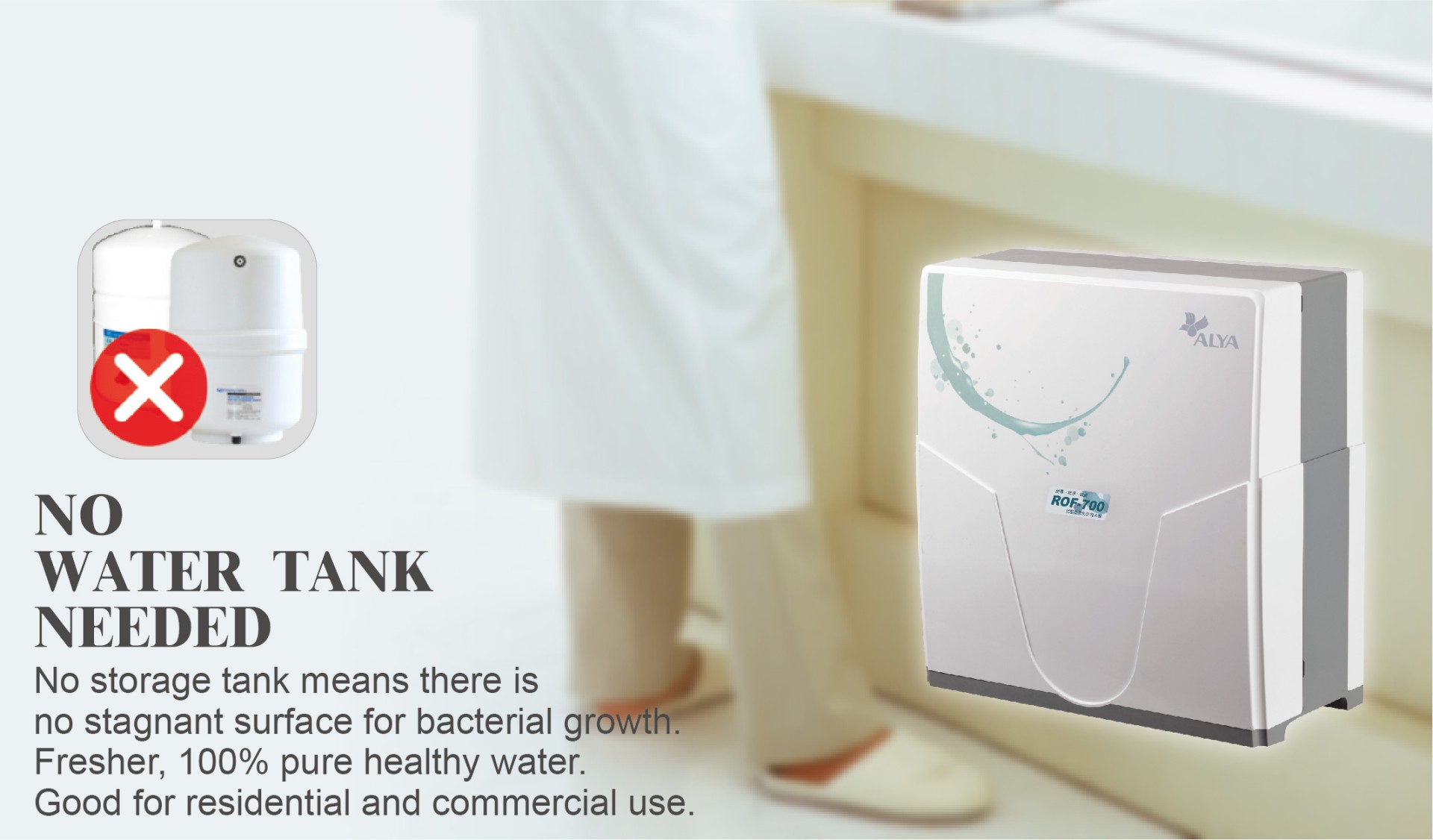

  2. Tank-free, direct flow system to safe space and to retrain bacteria growth
  3. Installed 400GPD membrane. The flow rate is 6 times more than normal RO system
  4. Using magnet wired transformer to stabilize voltage, ensure durability and keep from overheating
  5. Membrane housing designed with 2 o-rings to ensure durability and prevent water leak

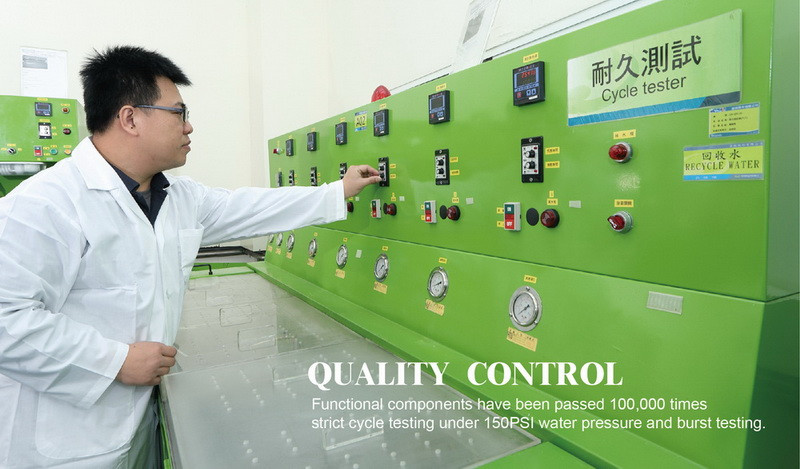

  6. The system passed 100,000 times cycle test under 150 PSI water pressure
  7. Functional components also passed cycle and burst test which conform to NSF test protocol
  8. Water contact components are produced with all raw materials
  9. 100% leak test before delivery
  10. Made in Taiwan



ITEMS

ROF-700

Cartridge Stages

5 Stages

Booster Pump Booster Pump with Transformer
(110V or 220V, 36VDC, 1.8A)
Transformer 100~240V,24V,1.5A
Cartridge Type In-line cartridge
Membrane(gallon) NSF

400 Gallon (200GPD*2)

Shutoff Valve 1/4"FIP
Less Drain 1:1
Water Output Flow  1.3LPM
PE Tube Size

 1/4"OD(6.35φ m/m)

Fitting Connect

  1/4"JACO&Quick connector

Storage Tank

N/A

Applicable pressure ≤50PSI
Dimensions (w/o tank) L380xW190xH410 (mm)
Weight 9 KG
Specification
Model No. Fitting Type Weight Cu'ft
ROF-700 JACO 10kgs 2.5 cu.ft

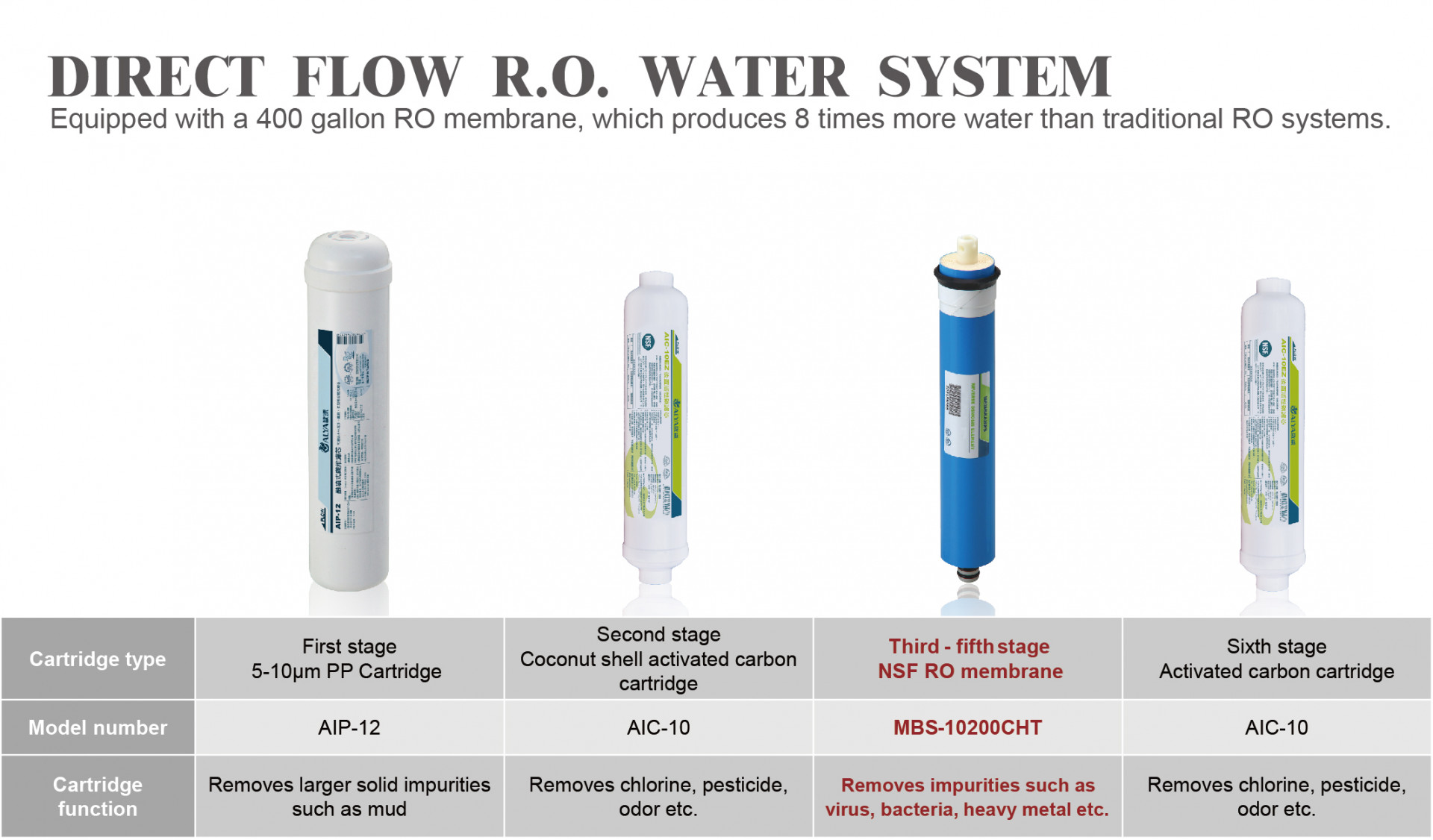

Cartridges:

Stage Model No. Media Function
1st AIP-12 11" ,PP sediment, 5 µ Remove dirt, sand and other sediment
2nd AIC-10 10", Coconut GAC,NSF Reduce chlorine, taste & odor
3rd~4th MBS10200CHT 200 GPD membrane*2 , NSF Remove virus, bacteria, heavy metal, etc.
5th AIC-10 10",Coconut GAC, NSF Have better tasting of water



ITEMS

ROF-700

Cartridge Stages

5 Stages

Booster Pump Booster Pump with Transformer
(110V or 220V, 36VDC, 1.8A)
Transformer 100~240V,24V,1.5A
Cartridge Type In-line cartridge
Membrane(gallon) NSF

400 Gallon (200GPD*2)

Shutoff Valve 1/4"FIP
Less Drain 1:1
Water Output Flow  1.3LPM
PE Tube Size

 1/4"OD(6.35φ m/m)

Fitting Connect

  1/4"JACO&Quick connector

Storage Tank

N/A

Applicable pressure ≤50PSI
Dimensions (w/o tank) L380xW190xH410 (mm)
Weight 9 KG

Assembly

Spare parts Model No. Spec.
Membrane housing HM-256  White, 1/8"NPTx1/8"NPT
Shut-off valve RO-S001 White, 1/4" Jaco type
Drinking faucet ZWDF-1002 8" tall spout, 3" shank, lead-free
Flow restrictor FRB-1000 bead type, 1000ml, gray color
PUMP PUMP-40024DC 400 GPD, 24VDC
Transformer TRAN-11024DC transformer 110/24VDC



Accessories

Spare parts Model No. Spec.
Water feed adaptor BV-1438L 3/8" ball valve with 1/2"MIPx1/2"FIP water feed fitting
PE tube PE-14W-NSF 1/4" tube, white, NSF
PE tube PE-38W-NSF 3/8" tube,white,NSF


Package

Carton box type Package
Export standard carton  box System only without storage tank


Containers

Container Dimension Cu'ft Quantity
20ft 1,172 CU'FT 440PCS
40ft 2,385 CU'FT 895PCS
40'HQ 2,690 CU'FT 1030PCS



Others

■   Quick-fitting type system is optional
■   Manual flush valve is optional

Certificates
  Taiwan Excellence Award 2016-(ROF-700)
