ROF-808 | OEM/ODM Customized Tankless RO,Direct Flow Compact RO Purifier Water Filter System, 6-Stage 400 GPD NSF Membrane Counter-top Machine without
SHARE：
- Countertop RO System
- Six stages filter cartridges
- With pump & transformer (110V or 220V 24VDC)
- With solenoid valve
- Tank-free
- LED blue light
- LED filter change reminder with water leak detector
- With pressure gauge to monitor operation status of system
- In-line filter, R.O. membrane and storage tank are NSF certified
- Capacity: 400GPD
- Waste water ratio: 1:1
- Flow rate : 1.3 liters/min
- Operating pressure: ≦50PSI
- Please install a pressure reducing valve if the water pressure exceeds 60 PSI.
-
With patented quick- changed 3-stage pre-filter. You can change them without any tools.
-
ABS material compact casing designed to prevent rusting. Easy to disassemble the casing which also can effectively block mosquitoes and dust
-
Easy access casing. Safe your time to replacing cartridges
-
Tank-free, direct flow system to safe space and to retrain bacteria growth
-
Installed 400GPD membrane. The flow rate is 6 times more than normal RO system
-
Equipped with pressure gauge to monitor operation status easily
-
Using magnet wired transformer to stabilize voltage, ensure durability and keep from overheating
- The system passed 100,000 times cycle test under 150 PSI water pressure
-
Functional components also passed cycle and burst test which conform to NSF test protocol
-
Water contact components are produced with all raw materials
-
100% leak test before delivery
-

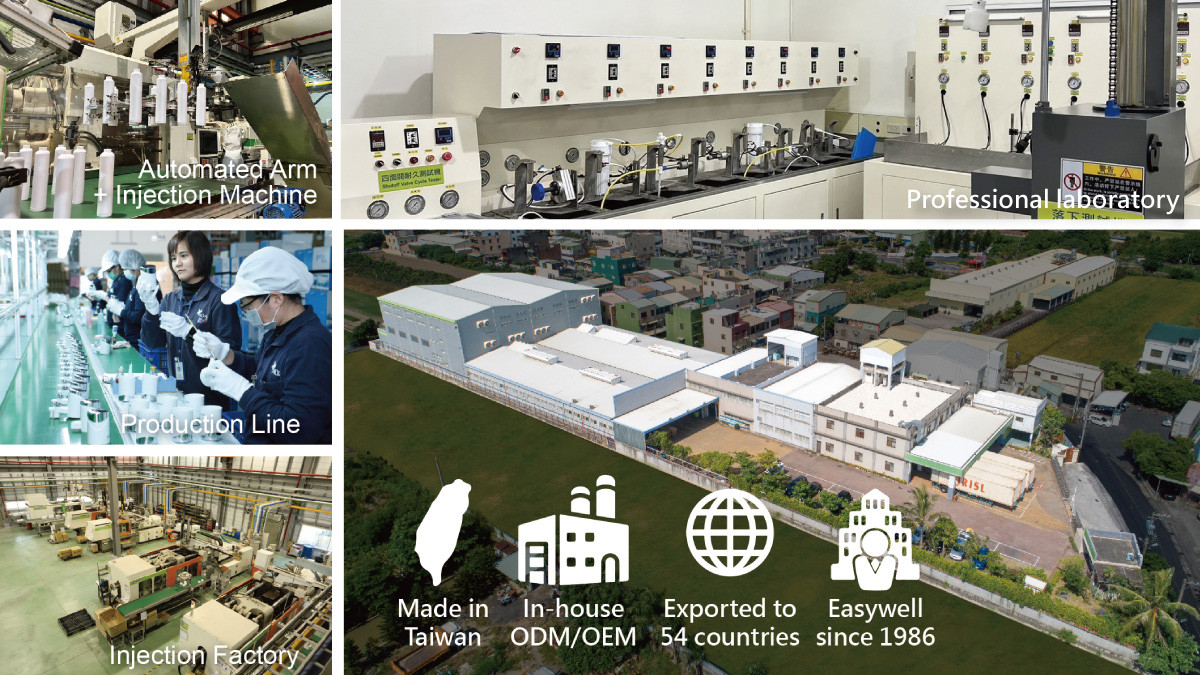

Made in Taiwan
| ITEMS |
ROF-808 |
| Cartridge Stages |
6 Stages |
| Booster Pump | Booster Pump with Transformer (110V or 220V, 36VDC, 1.8A) |
| Cartridge Type | Quick change or In-line cartridge |
| Membrane(gallon) NSF |
400 Gallon (200GPD*3) |
| Shutoff Valve | 1/4"FIP |
| Drain Ratio | 1:1 |
| Water Output Flow | 1.3LPM |
| PE Tube Size |
1/4"OD(6.35φ m/m) |
| Fitting Connect |
1/4" Quick connector |
| Storage Tank |
N/A |
| Applicable pressure | ≤50PSI |
| Dimensions (w/o tank) | L580xW230xH420 (mm) |
| Weight | 10 KG |
| Model No. | LED panel | Fitting Type | Weight | Cu'ft |
| ROF-801 | NO | JACO | 13kgs | 3.3 cu.ft |
| ROF-808 | YES | JACO | 12kgs | 3.3 cu.ft |
Cartridges:
| Stage | Model No. | Media | Function |
| 1st | QCC-10P | 11" ,PP sediment, 5 µ | Remove dirt, sand and other sediment |
| 2nd | QCC-10C | 11", Carbon Block | Reduce chlorine, taste & odor |
| 3rd | QCC-10C | 11", Carbon Block | Reduce chlorine, taste & odor |
| 4th~5th | MBS10200CHT | 200 GPD membrane*2, NSF | Remove virus, bacteria, heavy metal, etc. |
| 6th | AIC-6 | 6", Coconut GAC | Have better tasting of water |
| ITEMS |
ROF-808 |
| Cartridge Stages |
6 Stages |
| Booster Pump | Booster Pump with Transformer (110V or 220V, 36VDC, 1.8A) |
| Cartridge Type | Quick change or In-line cartridge |
| Membrane(gallon) NSF |
400 Gallon (200GPD*3) |
| Shutoff Valve | 1/4"FIP |
| Drain Ratio | 1:1 |
| Water Output Flow | 1.3LPM |
| PE Tube Size |
1/4"OD(6.35φ m/m) |
| Fitting Connect |
1/4" Quick connector |
| Storage Tank |
N/A |
| Applicable pressure | ≤50PSI |
| Dimensions (w/o tank) | L580xW230xH420 (mm) |
| Weight | 10 KG |
Assembly
| Spare parts | Model No. | Spec. |
| Membrane housing | HM-256 | White, 1/8"NPTx1/8"NPT |
| Shut-off valve | RO-S001 | White, 1/4" Jaco type |
| Drinking faucet | ZWDF-1002 | 8" tall spout, 3" shank, lead-free |
| Flow restrictor | FEB-450 | bead type, 450ml, green color |
| PUMP | PUMP-40024DC-CE | 400GPD/24VDC |
| SOLENOID VALVES | SD-P1424DC | 1/4"FIP 24VDC Plastic |
Accessories
| Spare parts | Model No. | Spec. |
| Water feed adaptor | BV-1438L | 3/8" ball valve with 1/2"MIPx1/2"FIP water feed fitting |
| PE tube | PE-14W-NSF & PE-38W-NSF | 1/4" tube & 3/8" tube, white, NSF |
Package
| Carton box type | Package |
| Export standard carton box | System and tank are packed combined |
Others
￭ Quick-fitting type system is optional
￭ LED Water quality detection device is optional (TDS :100ppm)
￭ Leaking detector is optional
| Taiwan Small & Medium Enterprises Innovation Award | ||
 |
